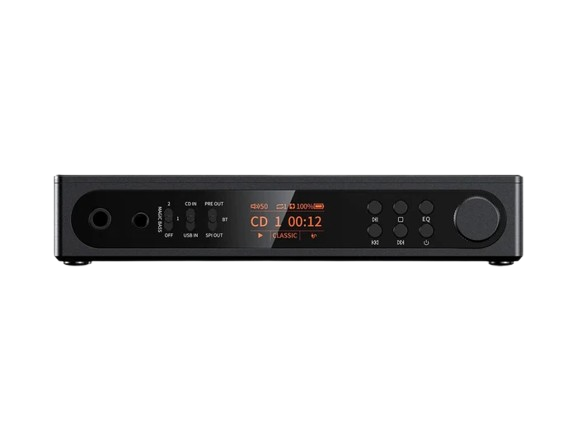

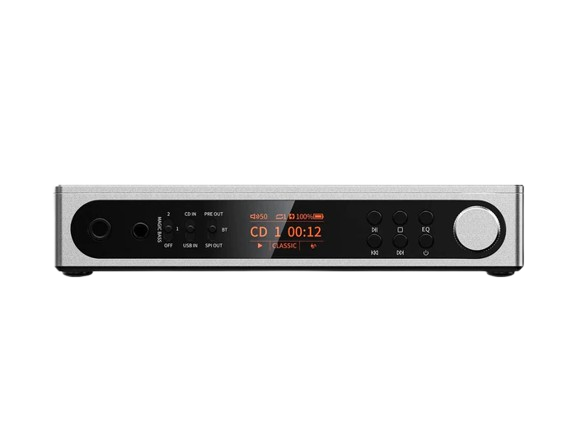

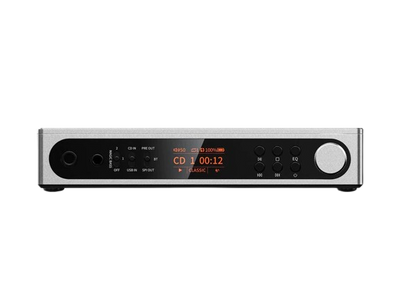

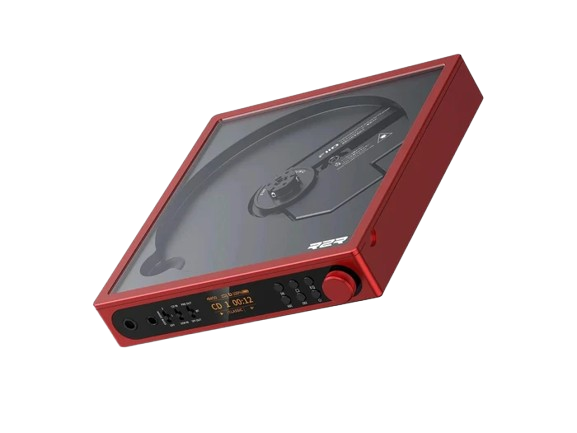

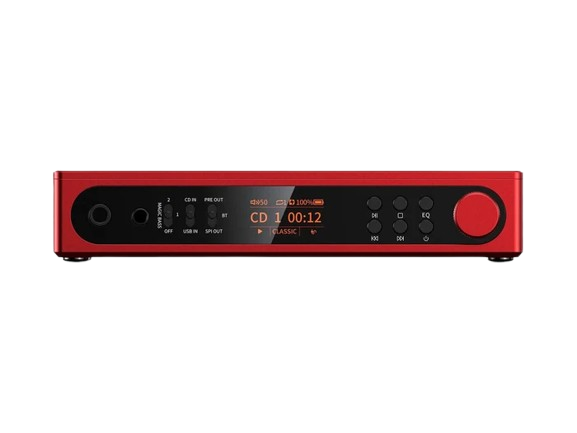

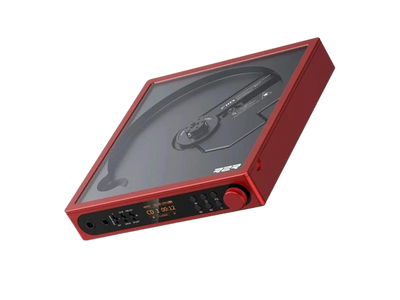

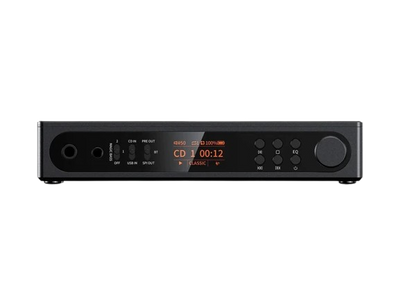

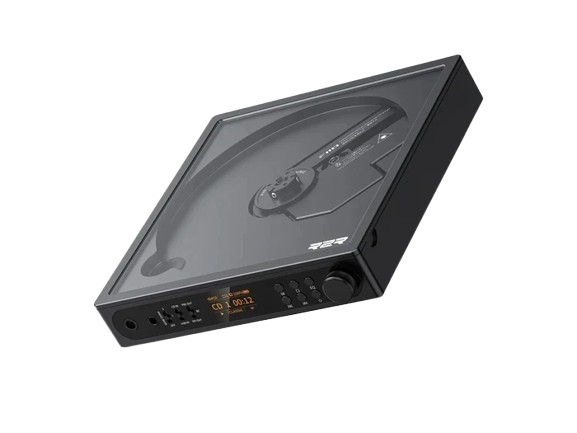

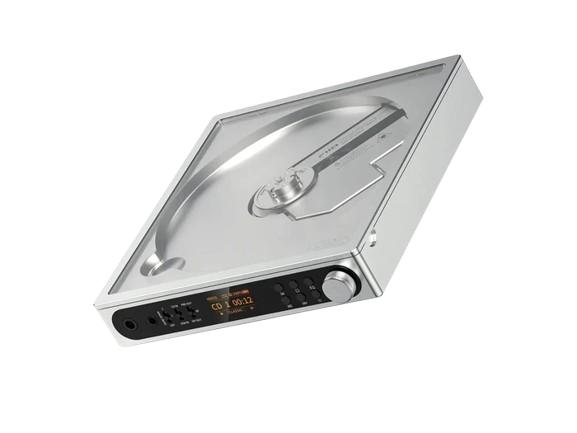

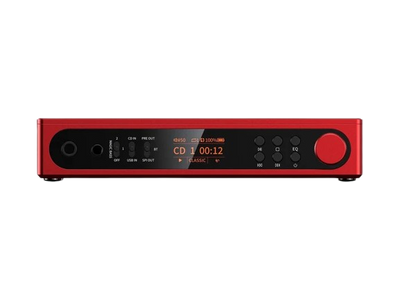

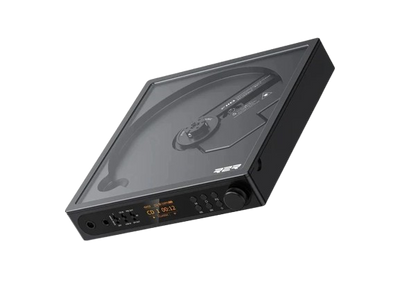

FiiO DM15 R2R Portable CD Player with R2R DAC
Overview
A CD collection deserves better than a decades-old player with a basic op-amp output stage and no way to send that sound anywhere except a wired headphone jack.
The FiiO DM15 R2R is a retro-styled portable CD player built around FiiO's own 4-channel, fully differential 24-bit R2R resistor-ladder DAC, using 192 precision thin-film resistors instead of a conventional delta-sigma chip. A Qualcomm QCC3095 Bluetooth platform transmits from either the CD transport or the USB DAC input with aptX Adaptive, aptX HD, aptX Low Latency, aptX, or SBC, and the USB input itself accepts PCM up to 384kHz/32-bit and DSD256 from a computer or phone.
A 4700mAh battery plays for about 7 hours continuously and supports PD2.0/PD3.0 fast charging for a roughly 2-hour full charge, while a 0.96-inch display shows track, battery, EQ, and Bluetooth status on the player's aluminum-and-glass body.
Simcoe Audio Video Insight

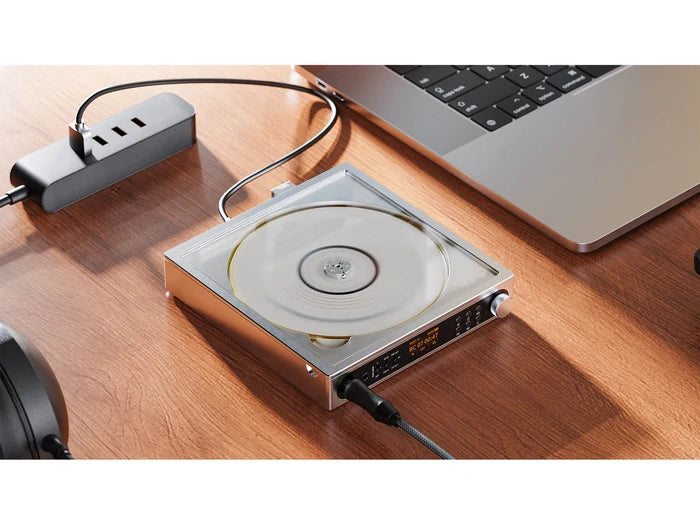

The Desktop mode is worth knowing about if the DM15 R2R ends up living on a desk rather than travelling — it bypasses the battery when connected to power, which avoids putting charge cycles on the 4700mAh cell during long stationary listening sessions. The USB REC port's ability to rip a CD straight to WAV is also a practical way to back up a disc collection before it wears out from repeated plays.
More Info
Why the FiiO DM15 R2R Stands Out
24-Bit R2R Resistor-Ladder DAC
192 precision thin-film resistors across a fully differential 4-channel design replace a conventional delta-sigma DAC chip for a distinct R2R sound signature.
Balanced 4.4mm Output up to 1150mW
The balanced output reaches up to 1150mW+1150mW into 32Ω, well above the 315mW+315mW available from the single-ended 3.5mm jack.
Dual-Source Bluetooth Transmission
A Qualcomm QCC3095 platform transmits from either the CD transport or the USB DAC input with aptX Adaptive, aptX HD, aptX Low Latency, aptX, or SBC.
CD Ripping to WAV
The USB REC port can rip a CD directly to WAV files, a practical way to back up discs before they wear out from repeated plays.
Desktop Mode and Fast Charging
Desktop mode bypasses the 4700mAh battery when connected to power, and PD2.0/PD3.0 fast charging brings it back to full in about 2 hours when it is running on battery.
Buyer's Guide
Who It's For
- The R2R Enthusiast: wants the resistor-ladder DAC sound signature in a portable CD player rather than a conventional delta-sigma chip.
- The CD Archivist: wants to rip a disc collection to WAV files through the USB REC port before the discs themselves wear out.
- The High-Power Listener: runs harder-to-drive headphones and wants the 1150mW balanced output rather than a standard single-ended jack.
How It Compares
The DM15 R2R sits above the DM13 BT in FiiO's retro CD player lineup. Where the DM13 BT uses dual Cirrus Logic CS43198 DAC chips, a 3750mAh battery, and up to 660mW+660mW balanced output, the DM15 R2R steps up to a 24-bit R2R resistor-ladder DAC, a larger 4700mAh battery with fast charging, and balanced output up to 1150mW+1150mW. Both transmit over Bluetooth with aptX HD, but the DM15 R2R adds aptX Adaptive and a dedicated USB DAC input the DM13 BT doesn't have.
FiiO DM15 R2R Portable CD Player with R2R DAC Specifications
| General Information | |
|---|---|
| Model | FiiO DM15 R2R |
| Type | Portable CD player with R2R DAC and Bluetooth transmission |
| Display | 0.96-inch TFT/LCD, 80 x 160 |
| Audio | |
| DAC | FiiO proprietary 4-channel, fully differential 24-bit R2R resistor-ladder (192 thin-film resistors, 0.1% accuracy, 30ppm temperature drift) |
| Controller / Op-Amps | GD32F305RET6 MCU; two SGM8262 op-amps |
| Bluetooth | Qualcomm QCC3095; SBC, aptX, aptX Low Latency, aptX HD, aptX Adaptive (transmits from CD or USB source) |
| USB DAC Input | Up to 384kHz/32-bit PCM and DSD256 |
| Output Power (3.5mm SE) | 575mW+575mW (16Ω) / 315mW+315mW (32Ω), THD+N <1% |
| Output Power (4.4mm BAL) | 480mW+480mW (16Ω) / 1150mW+1150mW (32Ω), THD+N <1% |
| Sound Presets | 24 presets (3 bass modes x 8 EQ curves) |
| Connectivity and Power | |

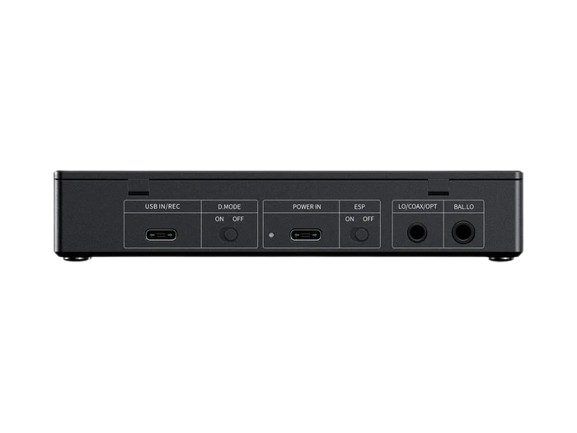

| Outputs | 3.5mm headphone/line/coaxial out, 4.4mm balanced headphone/line out |
| USB Type-C | Data, PD fast-charge power in, and USB REC port for CD ripping to WAV |
| Battery | 4700mAh, 3.85V; approximately 7 hours continuous playback; approximately 2 hours to full charge via PD2.0/PD3.0 |
| Other | Desktop mode (bypasses battery on external power), ESP anti-skip switch |
| Physical Specifications | |
| Dimensions | Approximately 144 x 137 x 25.5mm (excluding feet/knobs) |
| Weight | Approximately 471.5g |

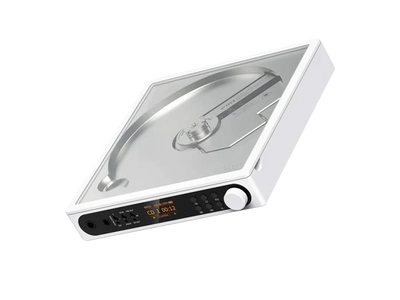

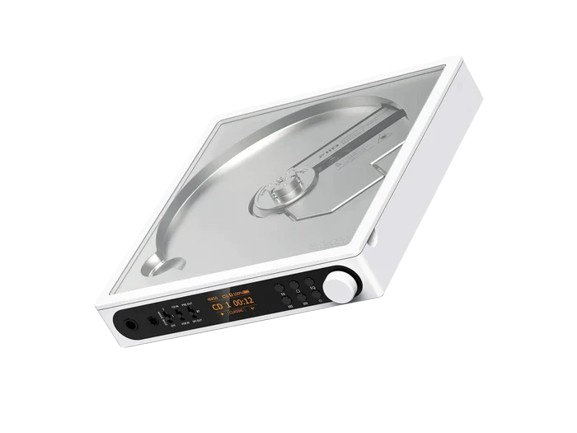

| Materials | Aluminum alloy chassis with tempered glass lid and front panel |

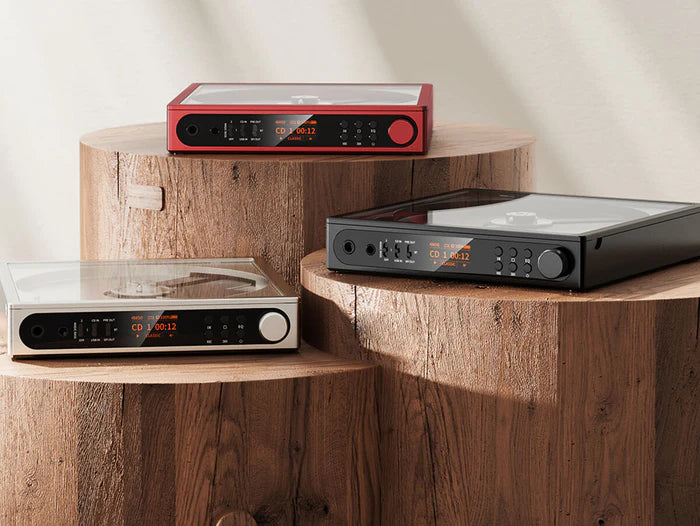

| Colours Available | Black, Red, Silver, Titanium Gold, White |
| In the Box | |
| Included Accessories | FiiO DM15 R2R, remote control, USB-A to USB-C cable, 3.5mm coaxial patch cord, quick start guide, after-sales maintenance card |
