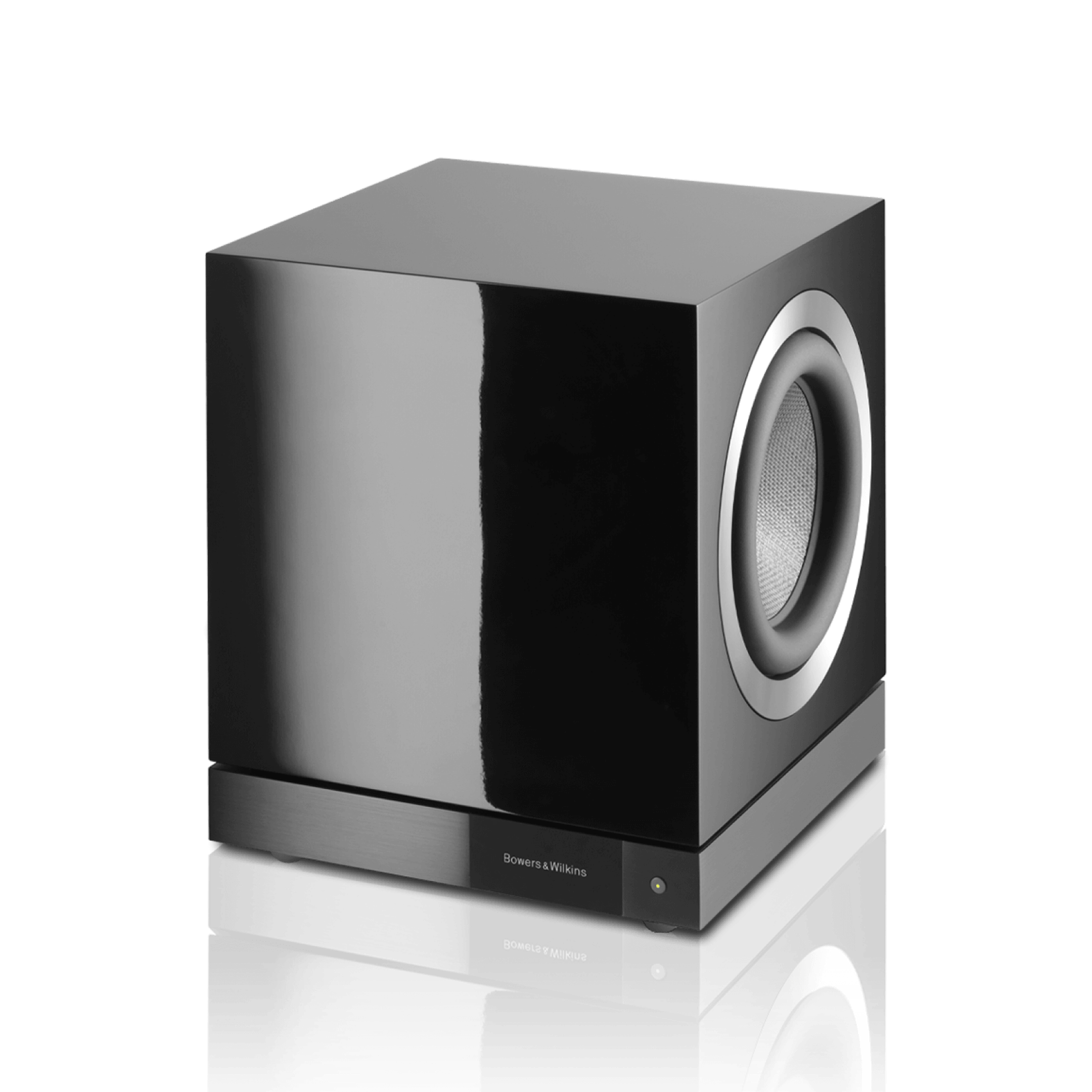

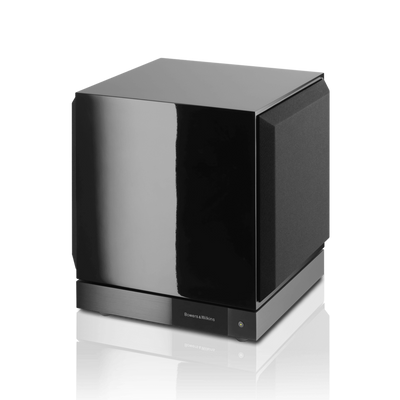

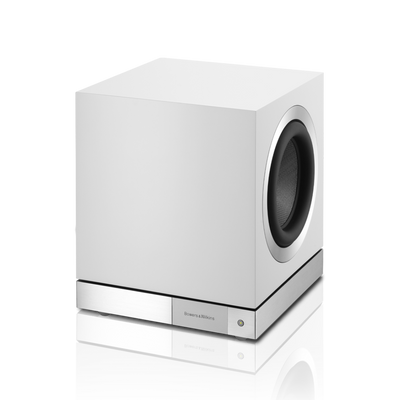

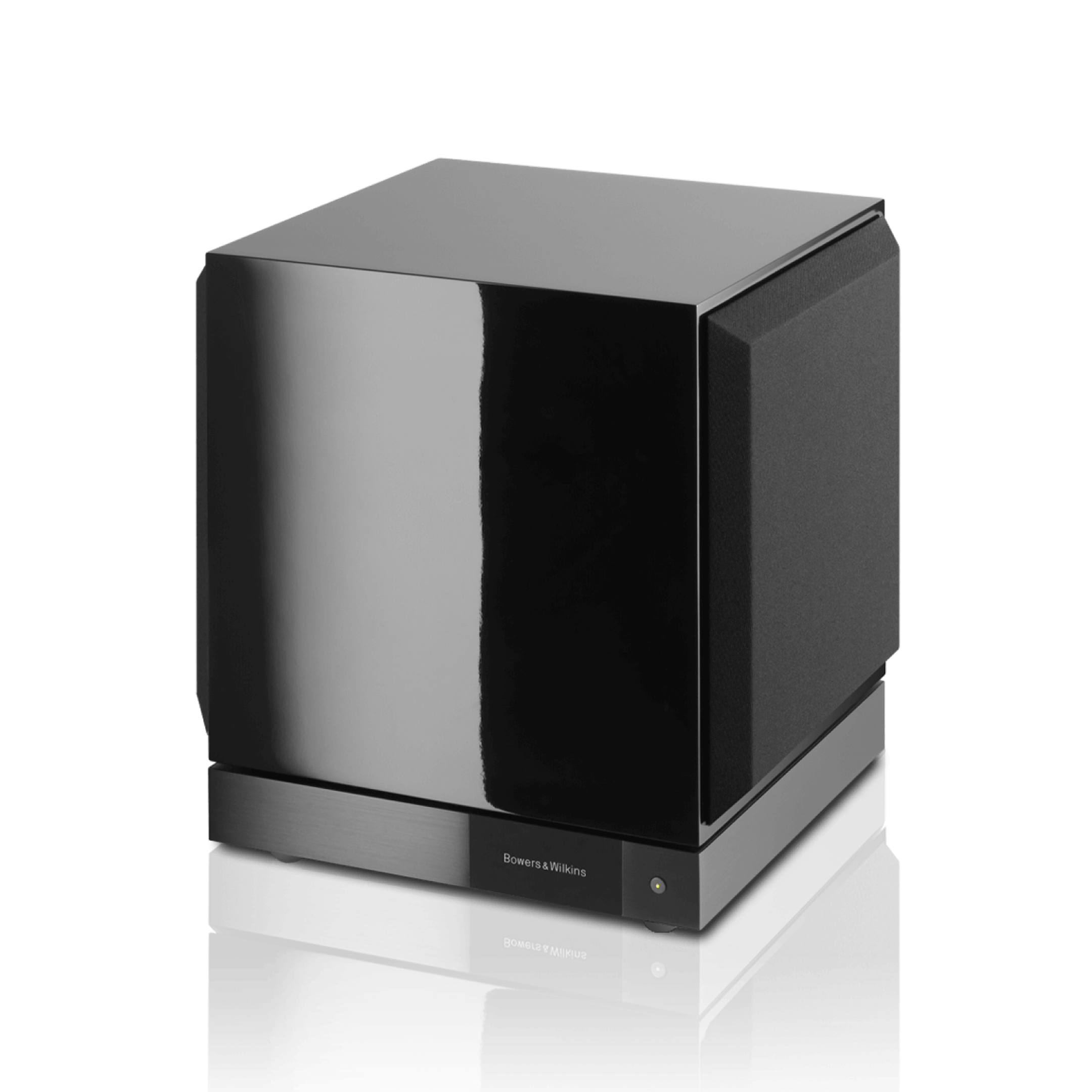

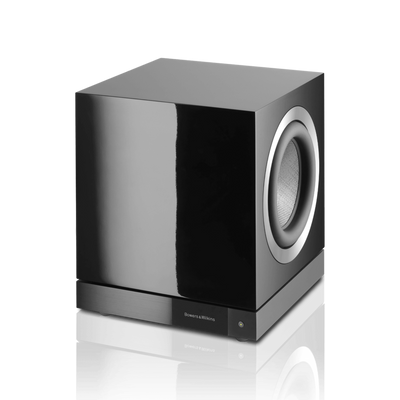

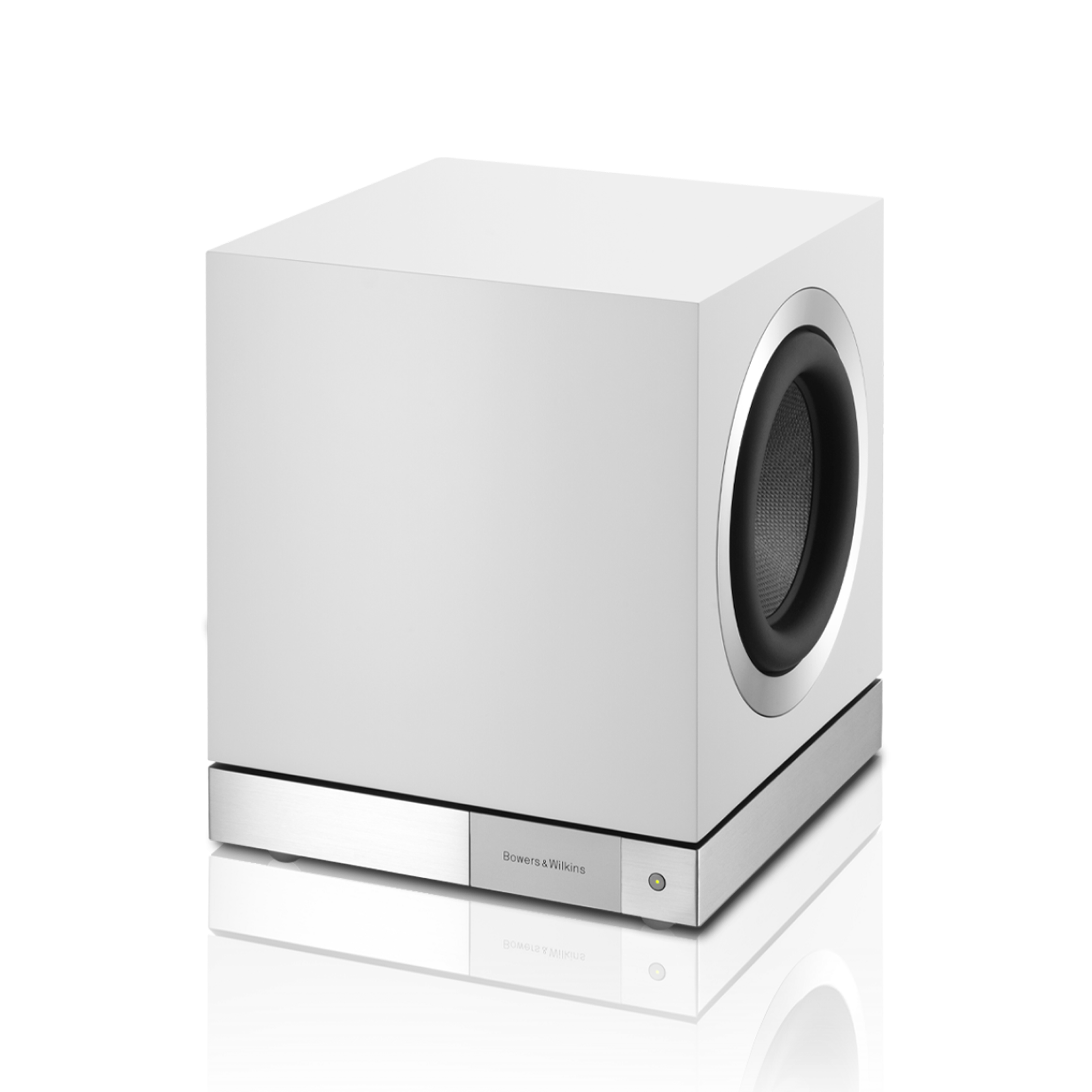

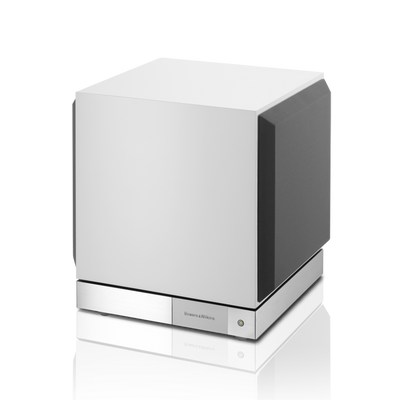

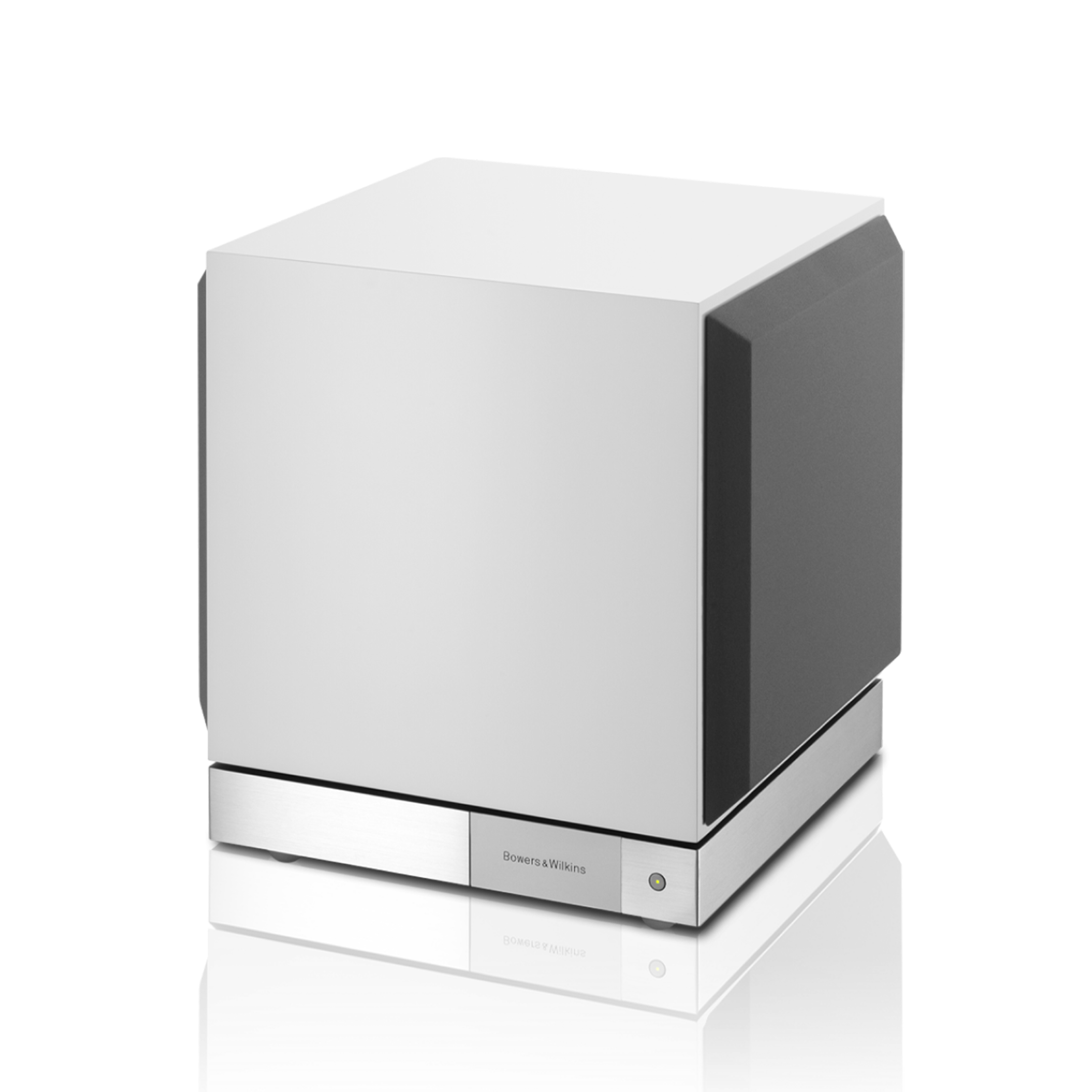

Bowers & Wilkins DB3D Subwoofer - (Each)
We are an authorized Bowers & Wilkins dealer!
This product is available in store only. Contact Simcoe Audio Video for more information on product availability including shipping and inventory.
Email Your Question
Pairs well with
30 Day Return Policy
Bowers & Wilkins DB3D Subwoofer - (Each)
Overview
The Bowers & Wilkins DB3D is a compact DB Series subwoofer. B&W says that despite its compact dimensions it delivers astonishingly powerful, controlled bass thanks to its twin 8-inch Aerofoil drivers, 1000W Class D Hypex amplifier, and digital signal processing.
Its two 200 mm Aerofoil cones sit back to back in a balanced configuration, which B&W says cancels out cabinet resonances so all that power goes into room-shaking bass, not wasted vibration. B&W calls it a space-saving, high-performance design that fits almost anywhere, and the perfect match for its 804 D4 and 805 D4 speakers.
An all-new digital preamplifier with Dynamic EQ and Room EQ keeps the sound precise for music and movies, and set-up runs through the B&W subwoofer app over Bluetooth LE, using your phone's microphone for Room EQ. Inputs include 2 XLR, 2 RCA, two 12V triggers, and RS-232. B&W rates it at 10Hz to 350Hz (-3dB).
Simcoe Audio Video Insight
The DB3D is a strong choice when floor space is tight, such as in a smaller media room, office, or bedroom system. It shares the 1000W amplifier and app-based Room EQ of the DB2D, and its RS-232 port and 12V triggers give a control system a way to manage it in a fully integrated install, which is the kind of system we design and install.
More Info
Why the Bowers & Wilkins DB3D Stands Out
1000W Class D Hypex Amplifier
Digital amplification that B&W says is cool-running and energy efficient.
Dual 8-Inch Aerofoil Cones
Two 200 mm variable-thickness cones in a balanced, back-to-back layout.
Resonance-Cancelling Design
Opposed drivers cancel out cabinet resonances so power goes into bass, not vibration.
Dynamic EQ and Room EQ
An all-new digital preamplifier; Room EQ uses your phone's microphone through the app.
Compact Footprint
360 x 320 x 300 mm, a size B&W says fits almost anywhere.
XLR, RCA, 12V Trigger, and RS-232
Two XLR, two RCA, two 12V triggers, and a 9-pin RS-232 port.
Buyer's Guide
Who It's For
- The 804 D4 or 805 D4 Owner: Wants the subwoofer B&W calls the perfect match for those speakers.
- The Space-Limited Room: Wants DB Series bass from a compact cabinet.
- The Integrated Home: Wants a subwoofer that a control system can manage over RS-232.
How It Compares
The DB3D shares its 1000W amplifier, app control, and 10Hz to 350Hz response with the DB2D, which steps up to two 10-inch drivers in a larger cabinet. The DB1D uses two 12-inch drivers and 2000W.
Bowers & Wilkins DB3D Subwoofer - (Each) Specifications
| General Information | |
|---|---|
| Model | Bowers & Wilkins DB3D |
| Brand | Bowers & Wilkins |
| Product Type | DB Series active subwoofer (each) |
| Driver & Amplifier | |
| Drive Units | 2 x 200 mm (8 in) Aerofoil cone, balanced configuration |
| Amplifier | 1000W Class D Hypex (max power output) |
| Power Consumption | 195W rated; <0.5W standby |
| Processing | Digital preamplifier with Dynamic EQ and Room EQ |
| Set-Up | App-based, Bluetooth LE control |
| Performance | |
| Frequency Response | 10Hz - 350Hz (-3dB, centred on level at 100Hz) |
| Frequency Range | 8.5Hz - 500Hz (-6dB) |
| Signal/Noise | 82dB |
| Input Impedance | XLR 20k ohms; RCA 10k ohms |
| Connections | |
| Inputs | 2 x XLR; 2 x RCA |
| Control | 2 x 3.5 mm 12V trigger; RS-232 (9-pin D) |
| Dimensions & Weight | |
| Height | 360 mm (14.1 in) |
| Width | 320 mm (12.6 in) |
| Depth | 300 mm (11.8 in) |
| Net Weight | 25 kg |
| Colours Available | Black (black grille); White (grey grille) |
