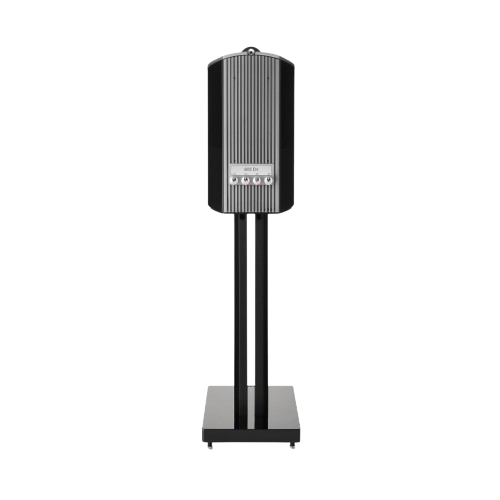

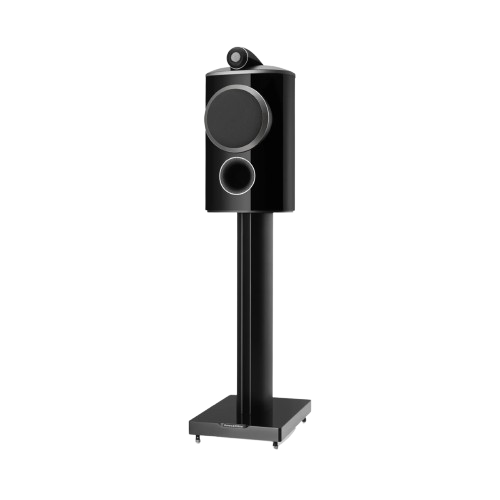

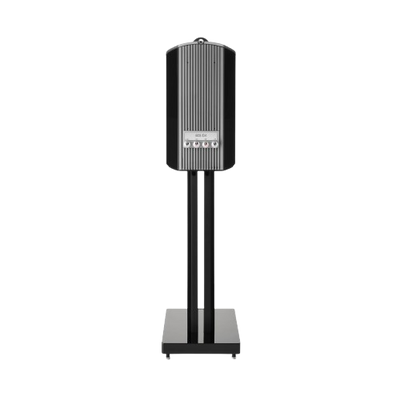

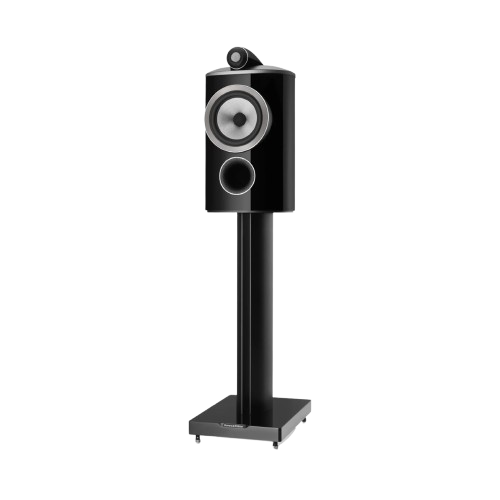

Bowers & Wilkins 805 D4 Stand Mount Speakers - (Pair)
Overview
A stand-mount speaker is often the right answer when the room is not big enough for a tower, and the 805 D4 is built so that choice does not come with a big compromise in bass or scale.

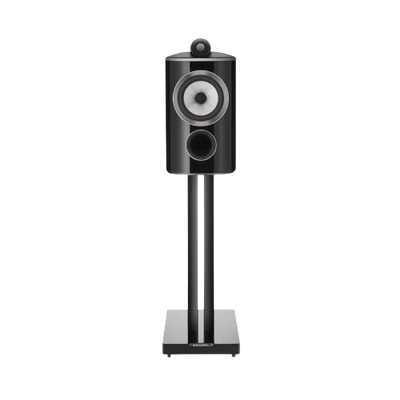

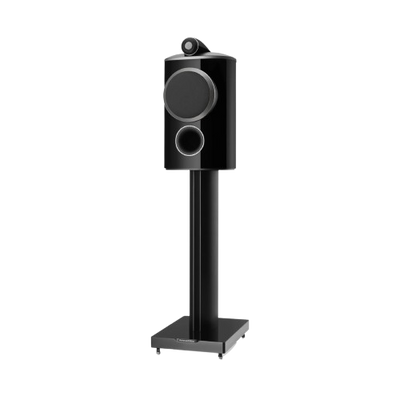

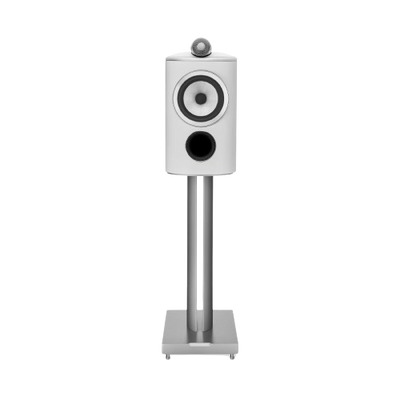

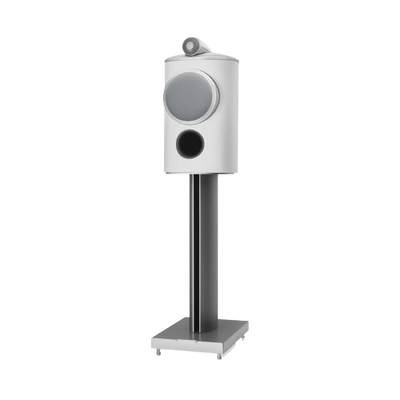

The Bowers & Wilkins 805 D4 is a 2-way vented-box stand-mount loudspeaker and the most compact model in the 800 Series Diamond range. It pairs a 25mm Diamond dome tweeter in a Solid Body Tweeter-on-Top housing with a 165mm Continuum cone bass/midrange driver, in a Reverse-Wrap cabinet with stiff aluminium bass pods.
Frequency response is 42Hz to 28kHz (±3dB) with 88dB sensitivity and an 8Ω nominal impedance (4.6Ω minimum). Bowers & Wilkins recommends 50W to 120W into 8Ω on unclipped programme.
Simcoe Audio Video Insight
A speaker like the 805 D4 sounds its best on a solid, dedicated stand at the right height, and stands are not included, so plan for them as part of the purchase. At 440mm tall and 15.55kg each, it is easy to position, and we are glad to go through stand options and room placement with you.
More Info
Why the Bowers & Wilkins 805 D4 Stands Out
Diamond Dome Tweeter
Bowers & Wilkins describes it as the combination of low mass, exceptional stiffness and outstanding accuracy, and says that 15 years after introducing it, it has not found a better tweeter dome technology.
Solid Body Tweeter Assembly
The Tweeter-on-Top housing has an elongated form with a longer tube-loading system, and is milled from a single solid block of aluminium to better resist resonance.
Continuum Cone Bass/Mid
A 165mm (6.5 in) Continuum cone handles both bass and midrange in this 2-way design.

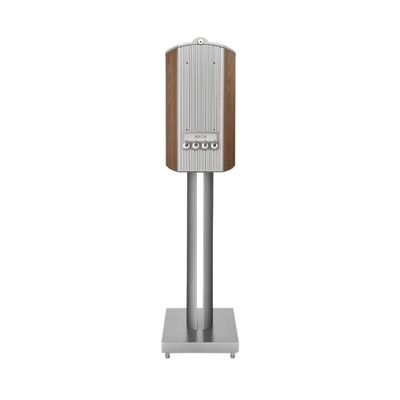

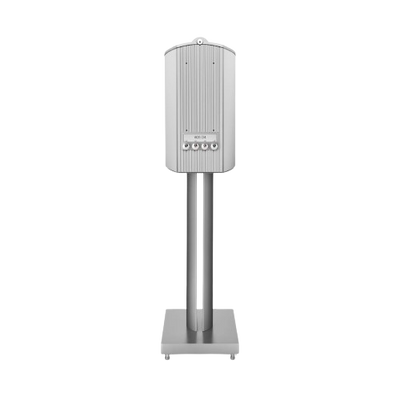

Reverse-Wrap Cabinet
Bowers & Wilkins says the cabinet and its stiff aluminium bass pods give the speaker exceptional bass extension and scale for a relatively compact model.
Dedicated Crossover Space
The reverse-wrap orientation lets Bowers & Wilkins place the crossover components inside their own space in the cabinet, with benefits to performance and serviceability.
Easy-to-Match Amplifier Range
Rated at 88dB sensitivity with a recommended 50W to 120W into 8Ω.
Buyer's Guide
Who It's For
- The Space-Conscious Listener: wants 800 Series Diamond technology in a cabinet that is 440mm tall.
- The Moderate-Power Amplifier Owner: has an amplifier in the 50W to 120W range Bowers & Wilkins recommends.
- The Stand-Mount Purist: prefers the focus of a 2-way design over a larger floorstander.
How It Compares
Bowers & Wilkins notes that the 804 D4 is a 3-way floorstander with twin 165mm Aerofoil bass cones and a dedicated midrange cone, which brings more power and scale and more accurate voices and detail. The 805 D4 Signature, listed separately, shares the 805 D4's drive units and cabinet dimensions.
Bowers & Wilkins 805 D4 Stand Mount Speakers - (Pair) Specifications
| General Information | |
|---|---|
| Model | Bowers & Wilkins 805 D4 |
| Brand | Bowers & Wilkins |
| Series | 800 Series Diamond |
| Type | 2-way vented-box stand-mount loudspeaker (pair) |
| Stands | Not included |
| Drive Units | |
| High Frequency | 1 x 25mm (1 in) Diamond dome, Solid Body Tweeter-on-Top |
| Bass/Midrange | 1 x 165mm (6.5 in) Continuum cone |
| Technologies | Matrix, Anti-Resonance Plug, Flowport |
| Performance | |
| Frequency Response | 42Hz - 28kHz (±3dB from reference axis) |
| Frequency Range | 34Hz - 35kHz |
| Sensitivity | 88dB (2.83Vrms, 1m) |
| Harmonic Distortion | <1% 90Hz - 20kHz; <0.3% 120Hz - 20kHz (2nd and 3rd harmonics, 90dB, 1m on axis) |
| Nominal Impedance | 8 ohms (minimum 4.6 ohms) |
| Recommended Amplifier Power | 50W - 120W into 8 ohms, unclipped programme |
| Max Recommended Cable Impedance | 0.1 ohms |
| Dimensions & Weight (Per Speaker) | |
| Height | 440mm (17.3 in) |
| Width | 240mm (9.4 in) |
| Depth | 373mm (14.7 in) |
| Net Weight | 15.55kg (34.3 lb) |

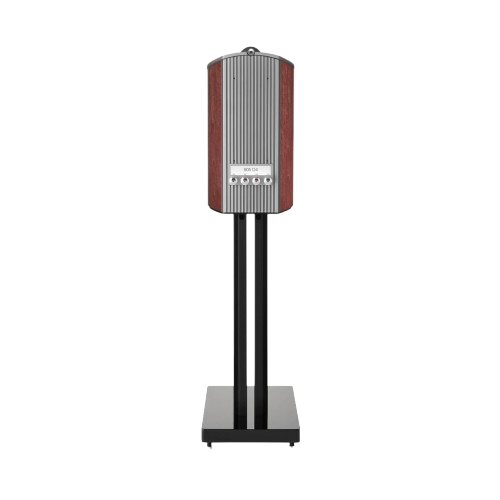

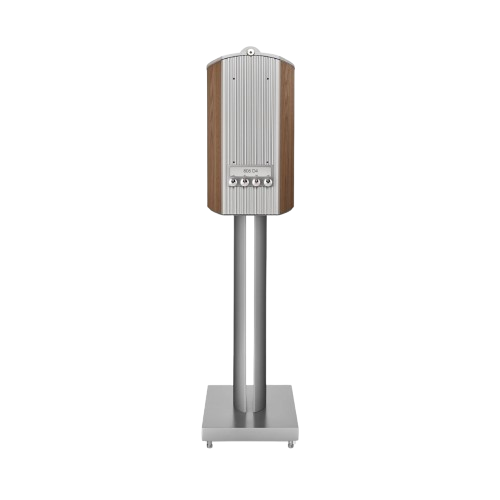

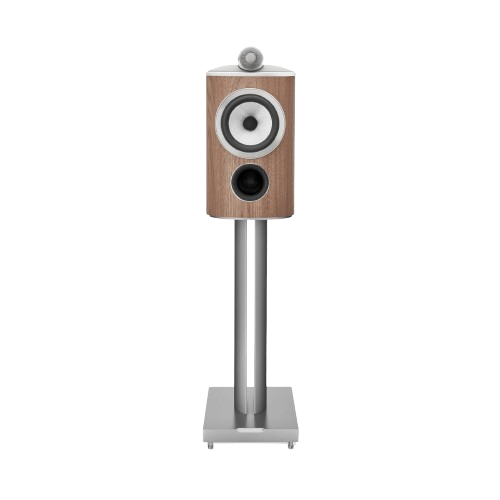

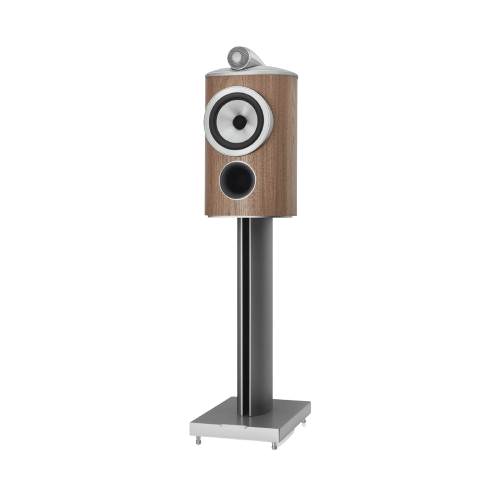

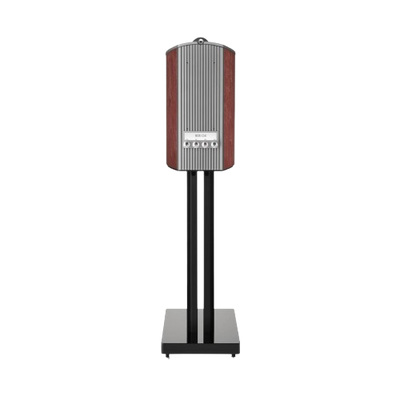

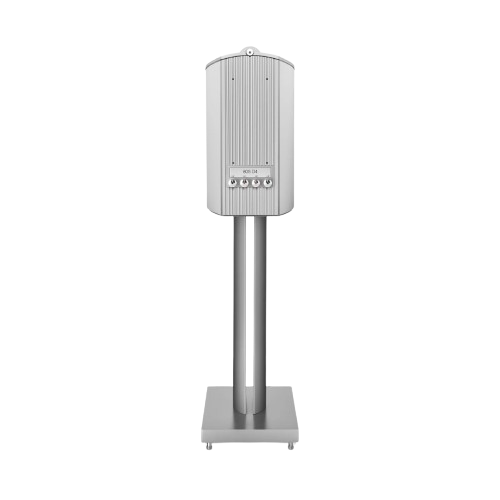

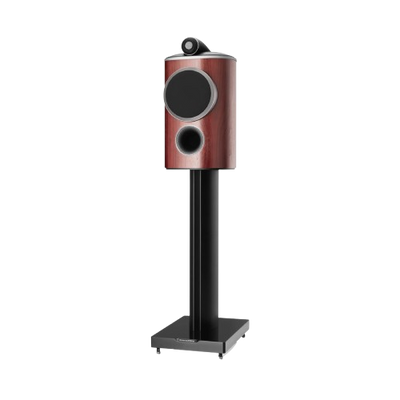

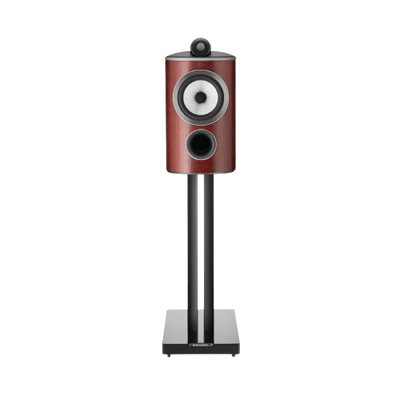

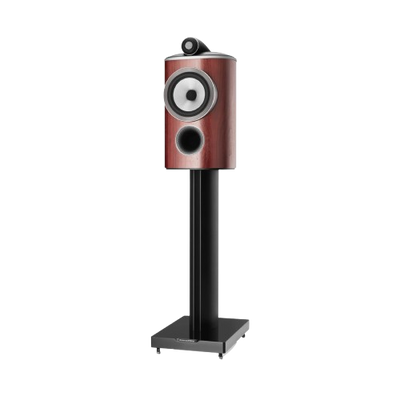

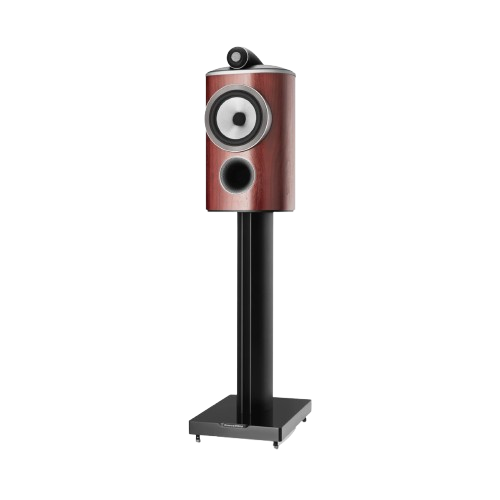

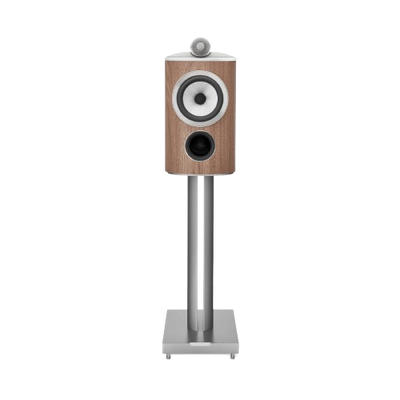

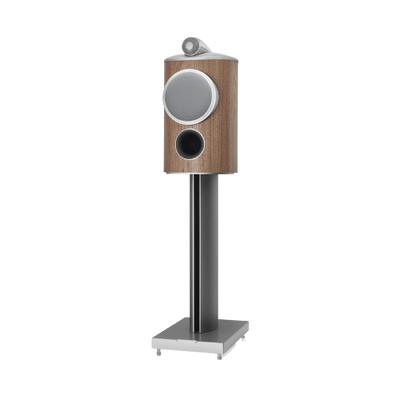

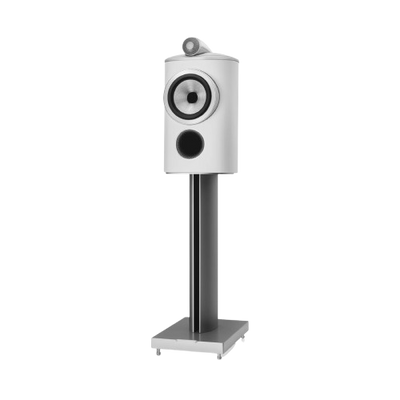

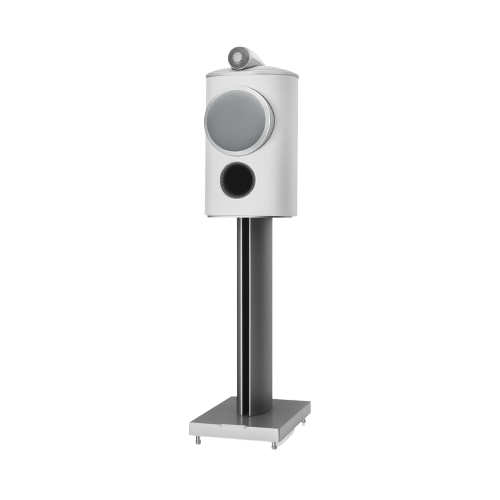

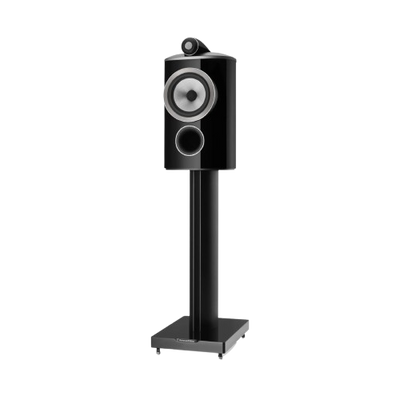

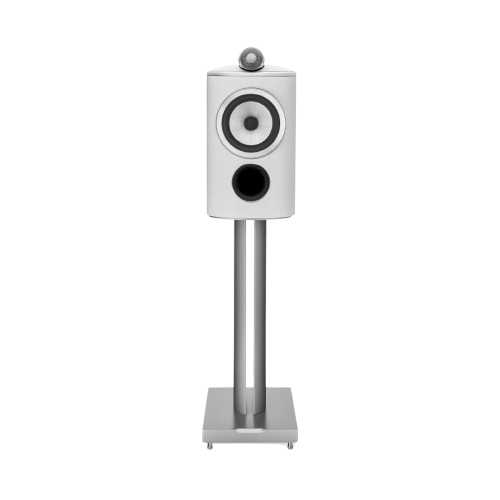

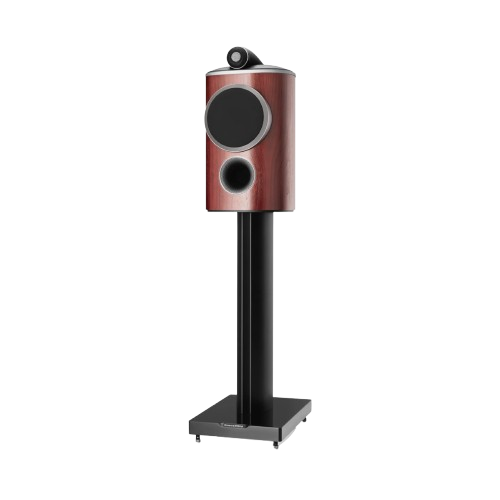

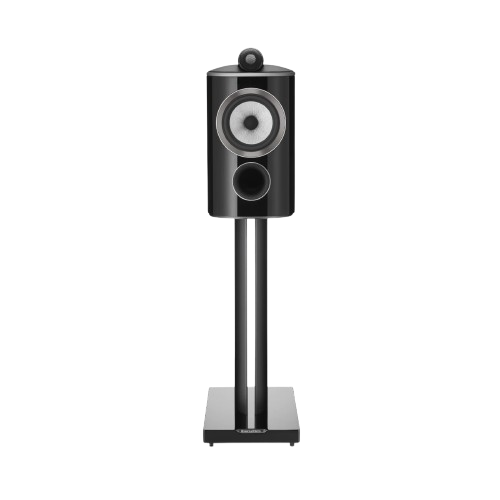

| Colours Available | Gloss Black, White, Satin Rosenut, Satin Walnut (grille: Black or Grey) |
