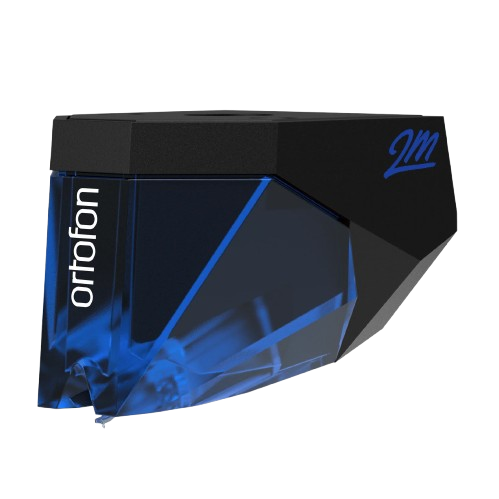

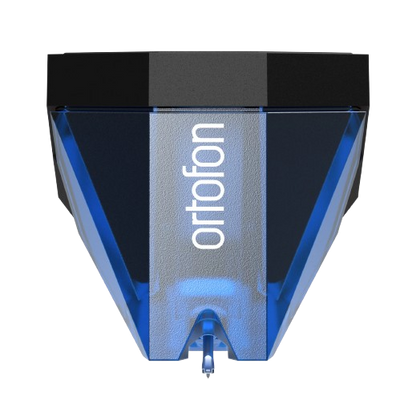

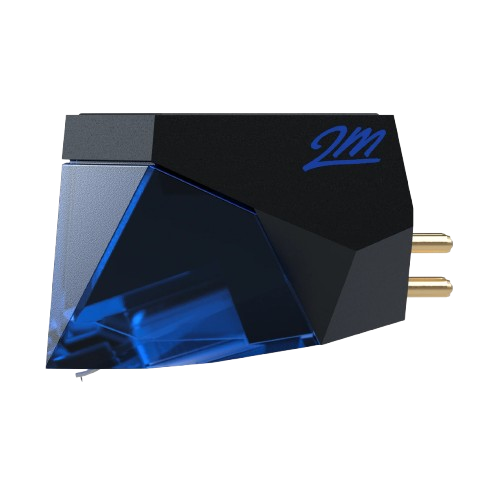

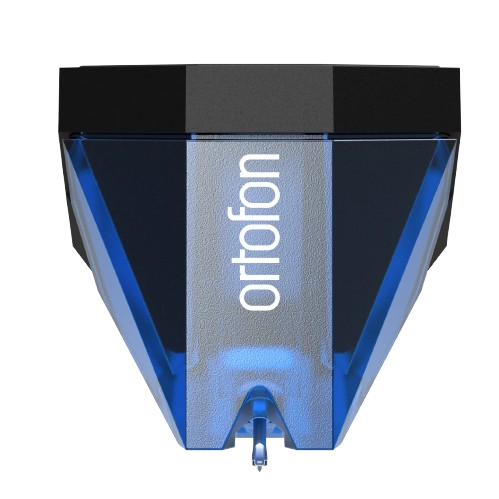

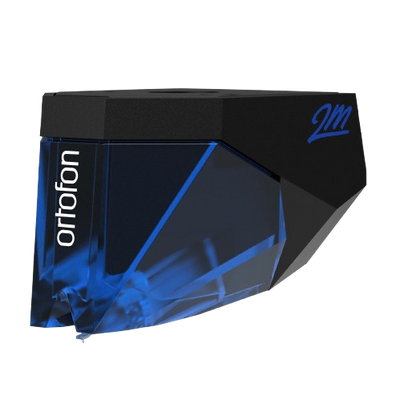

Ortofon 2M Blue Moving Magnet Cartridge
Overview
A stylus bonded to a metal shank adds mass right where a cartridge needs to move the least, and that extra mass can round off the fine detail at the top end of a record.
The Ortofon 2M Blue is a moving magnet phono cartridge built around a nude-mounted elliptical diamond, removing the metal shank a bonded stylus relies on and reducing the moving mass at the stylus tip. Split pole pin technology helps keep the frequency response flat across the audible range, and an aluminium cantilever keeps the stylus assembly light without sacrificing rigidity.
Output is rated at 5.5mV with 25dB of channel separation at 1kHz, and it's built to run into a standard 47kOhm phono input with 150 to 300pF of load capacitance, covering the majority of moving magnet phono stages without extra adjustment. It mounts to any standard half-inch headshell.
Simcoe Audio Video Insight
Because the 2M Blue's nude stylus sits directly at the end of the cantilever without a metal mounting shank, it's more exposed to handling than a bonded stylus like the one on the 2M Red — worth keeping in mind when cleaning the stylus or setting tracking force for the first time.
More Info
Why the Ortofon 2M Blue Stands Out
Nude Elliptical Stylus
Removes the metal mounting shank a bonded stylus relies on, reducing moving mass at the tip for better high-frequency tracking.
Split Pole Pin Technology
Helps keep the frequency response flat across the audible range.
Aluminium Cantilever
Keeps the stylus assembly light without sacrificing rigidity.
25dB Channel Separation
Delivers more precise stereo imaging than a standard elliptical cartridge.
Wide Phono Stage Compatibility
Runs into a standard 47kOhm input with 150 to 300pF of load capacitance, covering most moving magnet phono stages.
Standard Half-Inch Mount
Fits any standard half-inch headshell without an adapter.
Buyer's Guide
Who It's For
- The Detail-Focused Listener: wants the extended high-frequency tracking a nude stylus offers over Ortofon's entry-level cartridges.
- The 2M Red Owner Ready to Upgrade: wants a clear step up in channel separation and stylus design without leaving the 2M family or changing phono stage settings.
- The Hands-On Vinyl Enthusiast: comfortable with the extra care a nude stylus calls for during cleaning and setup, in exchange for its performance benefit.
How It Compares
Where the 2M Red uses a standard elliptical stylus, the 2M Blue steps up to a nude-mounted elliptical diamond, which Ortofon credits for its wider channel separation of 25dB against the Red's 22dB and a tighter frequency response tolerance. Both share the same 5.5mV output and 1.8g recommended tracking force, so the 2M Blue is a direct upgrade path for a 2M Red owner rather than a change in setup.
Ortofon 2M Blue Moving Magnet Cartridge Specifications
| General Information | |
|---|---|
| Model | Ortofon 2M Blue |
| Product Line | 2M Series |
| Type | Moving Magnet (MM) Cartridge |
| Stylus & Tracking | |
| Stylus Type | Nude Elliptical (r/R 8/18 µm) |
| Cantilever | Aluminium |
| Recommended Tracking Force | 1.8g (18mN) |
| Tracking Force Range | 1.6-2.0g (16-20mN) |
| Dynamic Lateral Compliance | 20µm/mN |
| Vertical Tracking Angle | 20° |
| Electrical Specifications | |
| Output Voltage | 5.5mV at 1kHz, 5cm/sec |
| Frequency Response | 20Hz - 20kHz (+2/-1dB) |
| Channel Separation | 25dB at 1kHz |
| Channel Balance | 1.5dB at 1kHz |
| Internal Impedance | 1.3kOhm DC Resistance |
| Internal Inductance | 700mH |
| Recommended Load Resistance | 47kOhm |
| Recommended Load Capacitance | 150-300pF |
| Physical Specifications | |
| Weight | 7.2g |
| Cartridge Colour | Black/Blue |
| Mount Type | Standard Half-Inch |
