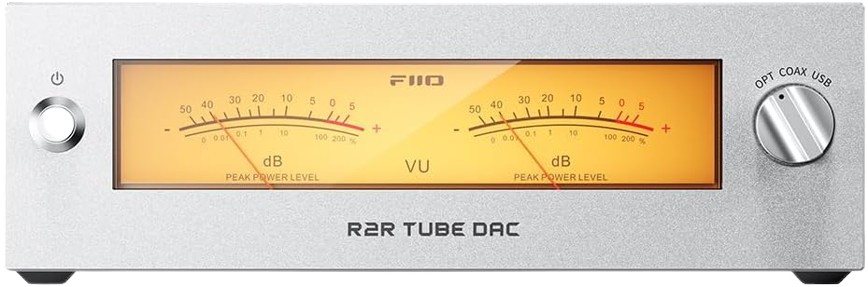

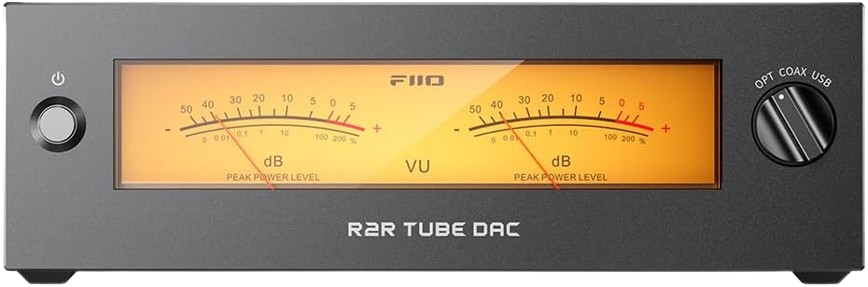

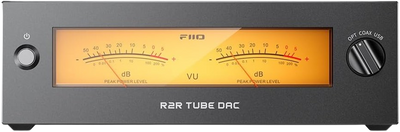

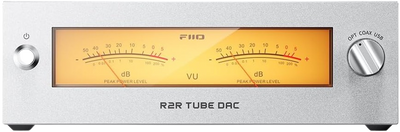

FiiO Warmer R2R Desktop DAC with Tube Output Stage

Overview

The FiiO Warmer R2R is a desktop DAC with a vacuum-tube buffer stage, pairing FiiO's own R2R resistor-ladder converter with four E88CC tubes and a pair of mechanical VU meters. It takes digital audio from a computer, streamer, TV or CD transport over USB, coaxial or optical, and sends a tube-buffered line signal to an amplifier, powered speakers or a headphone amp over RCA and XLR at the same time. It's for listeners who want an analog-leaning, tube-flavoured source at the front of a two-channel or desk system.

The converter is a fully differential 24-bit R2R array with 48 thin-film resistors per channel, 192 in total, at 0.1% accuracy, followed by two OPA1642 op-amps and four JJ Electronic E88CC tubes running as a voltage-amplification buffer. A switch selects oversampling (OS) or non-oversampling (NOS) playback, and the XLR outputs deliver 3.3Vrms with an SNR of 114dB, the RCA outputs 1.8Vrms.

USB handles up to 384kHz/32-bit with a UAC 1.0/2.0 switch for driver-free use, coaxial up to 192kHz/24-bit and optical up to 96kHz/24-bit. Power comes from a 46W low-noise toroidal linear transformer, and the backlit mechanical VU meters move with the music.

Simcoe Audio Video Insight

The Warmer R2R has no volume control and no headphone output, so it needs something downstream that sets the level: an integrated amp, preamp, headphone amplifier or powered speakers with their own volume. RCA and XLR are live at the same time, which makes it easy to feed a headphone amp and a pair of speakers without swapping cables. Try both the OS and NOS settings, as they change the presentation rather than simply switching a feature on or off. The chassis gets warm because the tubes run hot, which is normal, and since they work as low-stress buffers rather than power tubes, replacement isn't something most owners need to think about; if you do, FiiO recommends its own official tubes.

More Info

Why the FiiO Warmer R2R Stands Out

FiiO R2R Resistor Ladder

192 thin-film resistors, 0.1% accuracy.

Four E88CC Tubes

JJ Electronic tubes in the buffer stage.

RCA and XLR Together

Both outputs active at once.

OS / NOS Switch

Two presentation options.

Mechanical VU Meters

Warm backlit meters move with the music.

46W Linear Power Supply

Toroidal transformer for clean power.

Buyer's Guide

Who It's For

  • The Tube Sound Seeker: Wants tube character ahead of a solid-state amp.
  • The R2R Listener: Wants a resistor-ladder DAC in a desktop box.
  • The Two-System Owner: Wants to feed two amps or speakers at once.

How It Compares

Compared with FiiO's K11 R2R and K13 R2R, which build a resistor-ladder DAC into a desktop DAC and headphone amplifier, the Warmer R2R is a line-level source only: it adds a four-tube E88CC buffer and mechanical VU meters, and leaves volume and headphone duties to the amp or speakers that follow it.

FiiO Warmer R2R Desktop DAC with Tube Output Stage Specifications

General Information
ModelFiiO Warmer R2R
BrandFiiO
Product TypeR2R DAC with tube buffer (line output only)
Colours AvailableBlack, Silver
Audio
DACFiiO fully differential 24-bit R2R; 48 resistors per channel, 192 total, 0.1% accuracy
Output StageOPA1642 x2; JJ Electronic E88CC tubes x4
FilterOS / NOS switch
Volume ControlNone (fixed line output)
Line Outputs
XLR (Balanced)3.3Vrms; SNR ≥114dB; THD+N about 0.053%; dynamic range ≥105dB
RCA1.8Vrms; SNR ≥112dB; THD+N about 0.052%; dynamic range ≥98dB
Frequency Response20Hz to 45kHz (<2.4dB)
OperationRCA and XLR active simultaneously
Inputs and Controls
USBUSB-C, up to 384kHz/32-bit; UAC 1.0/2.0 switch
CoaxialUp to 192kHz/24-bit
OpticalUp to 96kHz/24-bit
HardwareGD32F303RET6 control; SA9312L USB
ControlsPower button, input knob
DisplayBacklit mechanical VU meters
Power and Physical
Power Supply46W toroidal linear transformer; 110-120V or 220-240V model
DimensionsAbout 223.5 x 213 x 66.8mm (with feet)
WeightAbout 2865g
In the BoxAC power cable, USB cable, spare fuse, quick start guide

Simcoe Audio Video Installation

Our professional team of designers and installers provide custom design solutions and installation for existing homes and new builds. We work with home owners, home builders and designers to create scalable solutions tailored to you.

Home Theatre & Media Rooms | Home Audio Solutions | AV Automation

FiiO Warmer R2R Desktop DAC with Tube Output Stage FAQs

Does the FiiO Warmer R2R have a volume control?

No. It has a fixed line output, so connect it to an amp, preamp, headphone amp or powered speakers that control the volume.

Can I plug headphones into it?

No. It has no headphone output. Pair it with a headphone amplifier over RCA or XLR.

Can I use RCA and XLR at the same time?

Yes. Both outputs are active simultaneously in every input mode.

Can the tubes be replaced?

Yes, though it's rarely needed: the tubes work as voltage buffers rather than power tubes, which extends their life. FiiO recommends using only its official replacement tubes.
