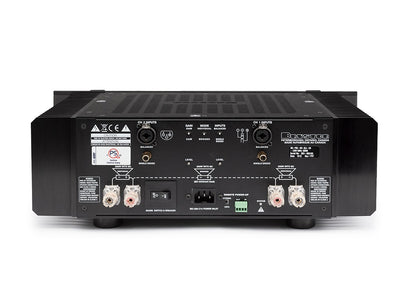

Amplificateur stéréo cubique Bryston 3B - Amplificateurs - Argent 19"

En 1973, un jeune ingénieur du nom de Chris Russell a emmené son nouveau prototype d'amplificateur, le PRO 3, dans un studio A list à Toronto pour une audition. Il est reparti avec une commande pour deux. Près de cinq décennies plus tard, cet ampli a évolué pour devenir le Bryston 3B Cubed. Il est deux fois plus puissant que l'original et dix fois plus impressionnant. Bien qu'il s'agisse de l'un de nos plus petits amplificateurs, il dispose de la même technologie que celle de notre vénérable 4B. Un grand avantage, cependant, est la faible profondeur. Le 3B Cubed est un excellent ampli polyvalent, mais il est particulièrement utile pour les applications à faible profondeur de montage.

Amplificateur stéréo cubique Bryston 3B - Amplificateurs - Argent 19" Specifications

General Information
Model 3B Cubed (3B³)
Brand Bryston
Type Dual-Channel (Stereo) Power Amplifier
Design Solid State / Convection Cooled
Audio Performance
Power Output (Stereo) 200W (8Ω) / 300W (4Ω) per channel
Power Output (Bridged Mono) 400W into 8 ohms
Frequency Response <1Hz to 100kHz (-3dB)
Total Harmonic Distortion <0.005% (20Hz - 20kHz)
Signal-to-Noise Ratio -110dB (Single Ended)
Damping Factor >500 at 20Hz (8 ohms)
Connectivity & Control
Inputs 1 x Pair Balanced (XLR), 1 x Pair Single-Ended (RCA)
Gain Settings 23dB or 29dB (Switchable)
Trigger DC 12V Trigger In/Out
Monitoring Clipping, Temperature, and Power Status LEDs
Dimensions & Construction
Dimensions (W x H x D) 17" or 19" x 4.6" x 16.2"
Weight 33 lbs / 15 kg
Chassis Heavy-Gauge Aluminum with Anodized Finish

Amplificateur stéréo cubique Bryston 3B - Amplificateurs - Argent 19" FAQs

What is the power output of the Bryston 3B³ Cubed Stereo Amplifier?

The Bryston 3B³ delivers 200 watts per channel into 8Ω and 300 watts per channel into 4Ω. It also offers a bridged mono mode providing 400 watts into 8Ω.

What are the dimensions and weight of the amplifier?

The amplifier measures 17 inches in width, 8.1 inches in height, and 10.75 inches in depth (12.75 inches with front handles). It weighs 35 lbs (16 kg).

What is the warranty period for the amplifier?

Bryston offers a 20-year warranty on the 3B³ amplifier, reflecting their confidence in its durability and performance.

What type of inputs does the amplifier support?

The Bryston 3B³ features both balanced XLR and unbalanced RCA inputs, offering flexibility for various audio sources.
