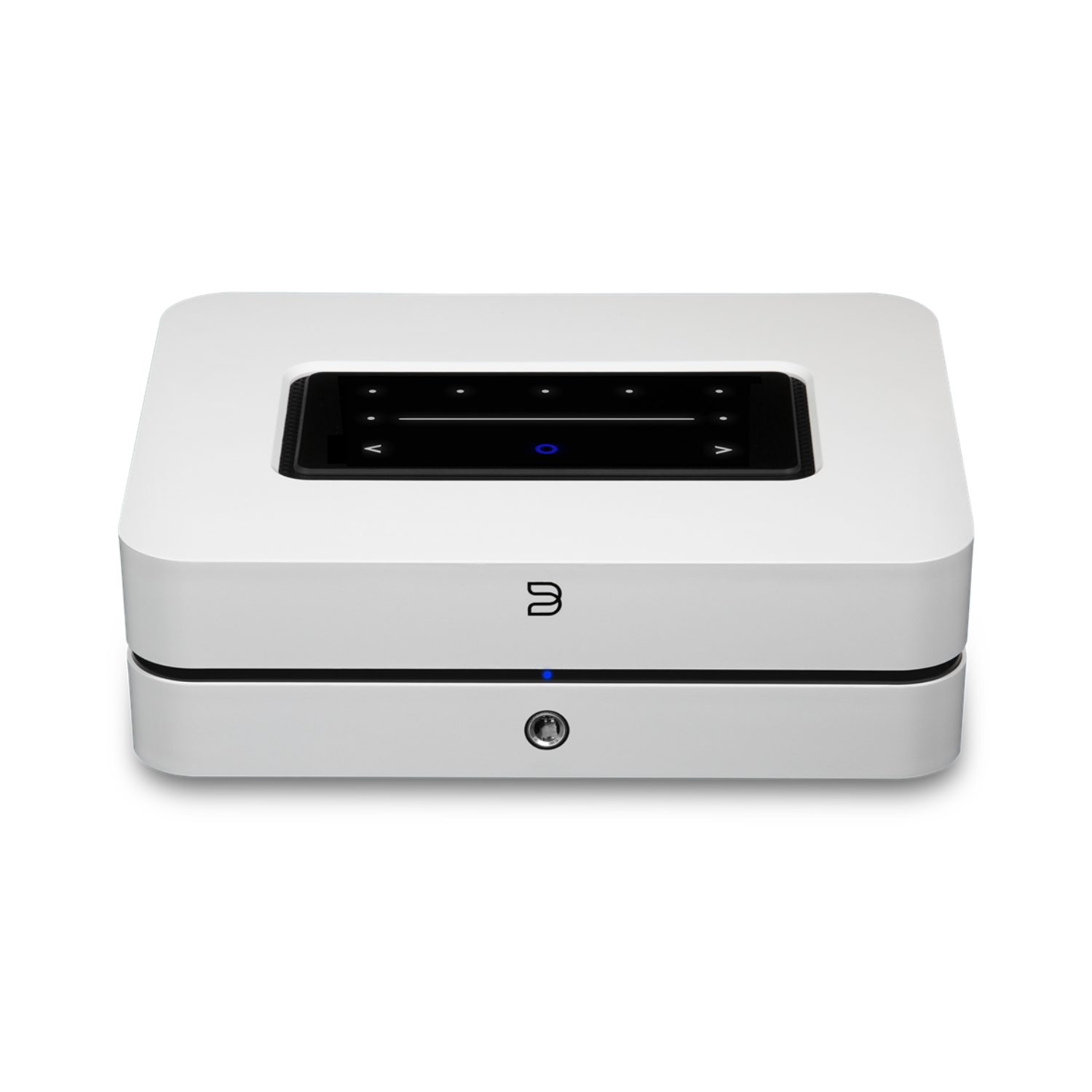

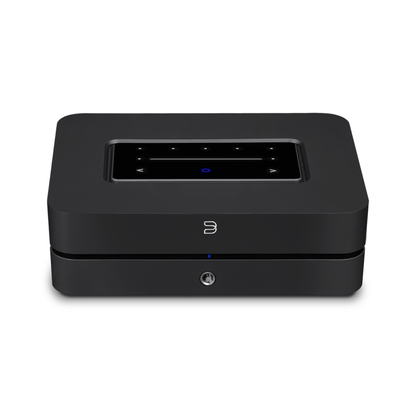

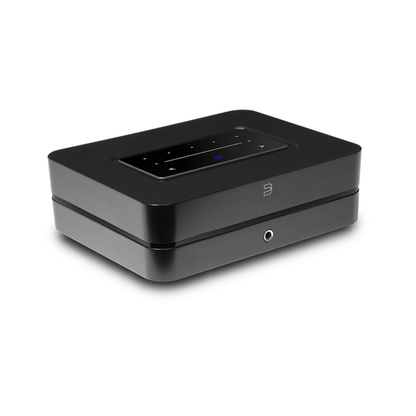

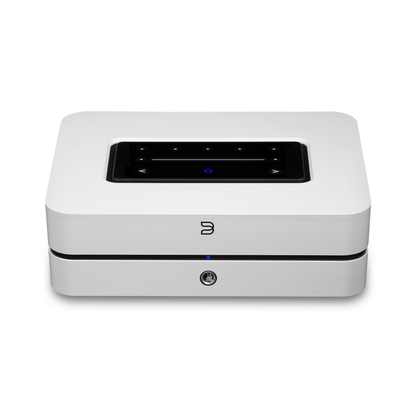

Product Overview |
Amplifier Type |

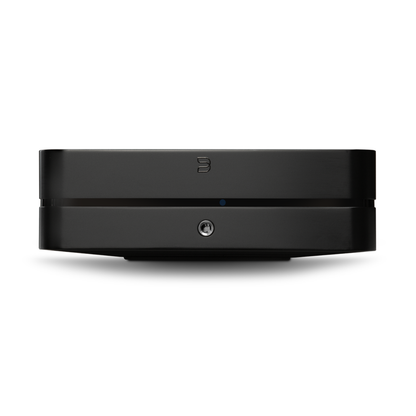

High-Performance Streaming Amplifier |
Power Output (RMS) |
100W x 2 stereo / 80W x 3 LCR (8 ohms) |
Impedance |
4 to 16 ohms |
Frequency Response |
20 Hz – 20 kHz |
Audio Specifications |
Audio Formats Supported |
MP3, AAC, WMA, WMA-L, OGG, ALAC, OPUS, FLAC, MQA, WAV, AIFF, MPEG-4 SLS |
Hi-Res Audio Support |
Up to 24-bit/192 kHz, DSD256 |
THD (Total Harmonic Distortion) |
0.005% (THD+N) |
Signal-to-Noise Ratio |
102 dBA |
Dynamic Power |
265W (4 ohms) / 140W (8 ohms) |

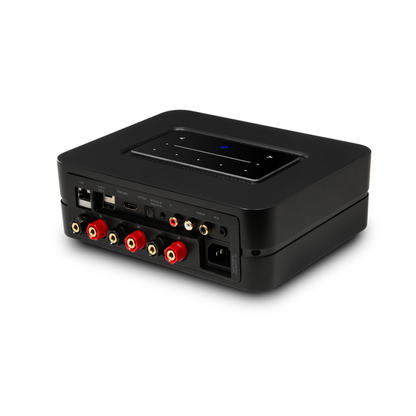

Audio Inputs |
HDMI eARC, Toslink Optical, RCA Analog, 3.5mm Optical/Analog Combo, USB-C (PC Input) |
Connectivity |
Bluetooth |
Bluetooth 5.2 aptX HD (two-way: transmit & receive) |
Wi-Fi |
Wi-Fi 5 (802.11ac), dual-band |
Ethernet |
Gigabit Ethernet (RJ45, 1000 Mbps) |
USB Ports |
USB Type-A (external storage, FAT32/NTFS) / USB-C Audio |
Subwoofer Output |
RCA x 1; Wireless to PULSE SUB+ |
Video and Display |
HDMI Input |
HDMI eARC |
Surround Sound and Processing |
Surround Sound Processing |
Dolby Digital (wireless surround via BluOS Bonded Speaker Link) |
Amplification Technology |
DirectDigital™ |
Power and Cooling |
Power Consumption |
12W |
Dimensions (H x W x D) |
2.75" x 8.7" x 7.5" (70 x 220 x 190 mm) |
Weight |
4.18 lbs (1.9 kg) |
Additional Features |
Headphone Output |
6.35mm stereo with THX AAA™ technology; Bluetooth |
Control Options |

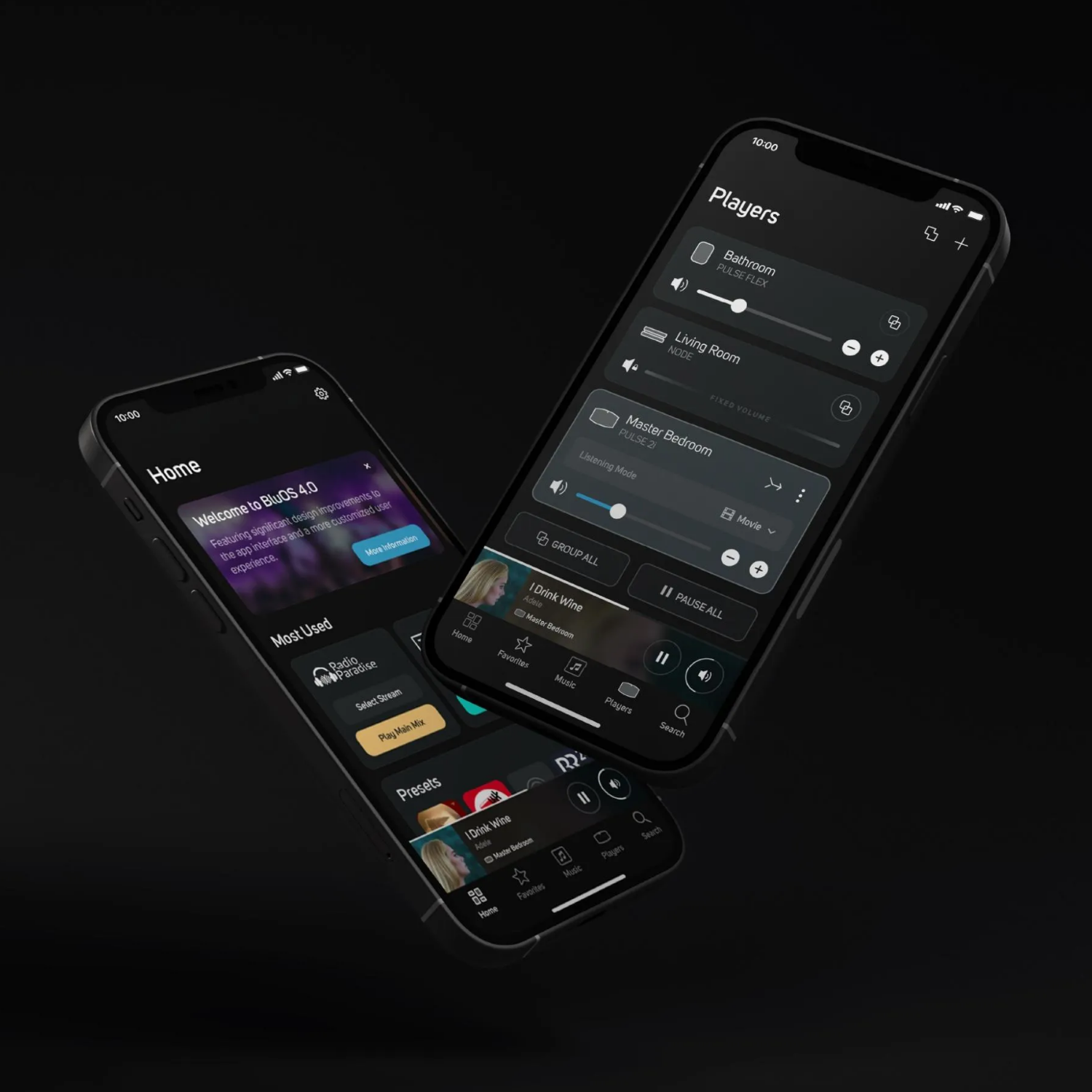

BluOS Control App, Touch Panel with 5 Presets, IR Remote, Voice Control (Alexa, Google Assistant) |
Included Accessories |
120V & 230V AC Power Cords, Ethernet Cable, TOSLINK Optical to 3.5mm Adapter, Safety/Warranty Guide, Quick Setup Guide, Dirac Live Ready Info Card |
Certifications and Warranty |
Certifications |
CE, UL, FCC |
Warranty |
1 Year Limited Warranty |
