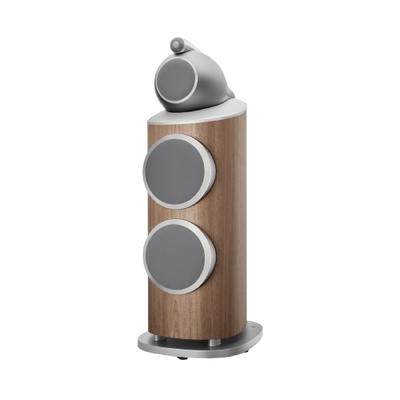

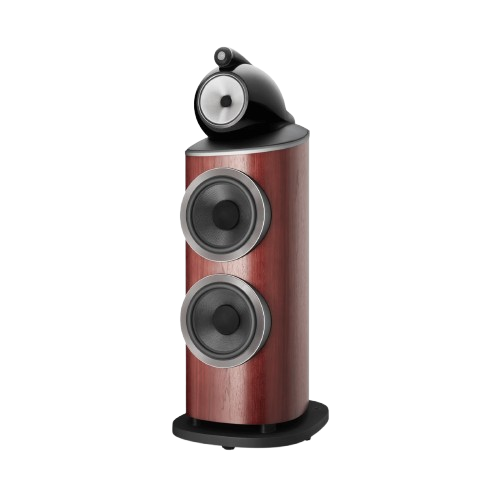

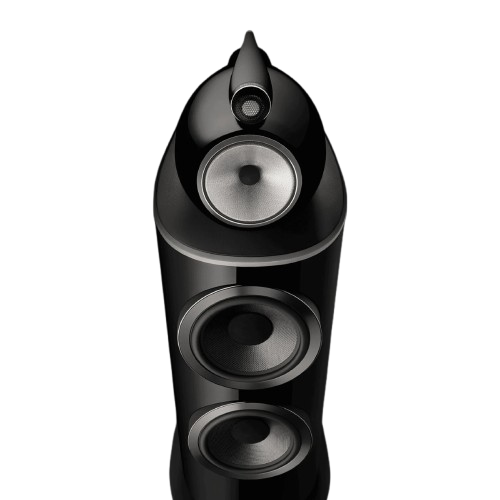

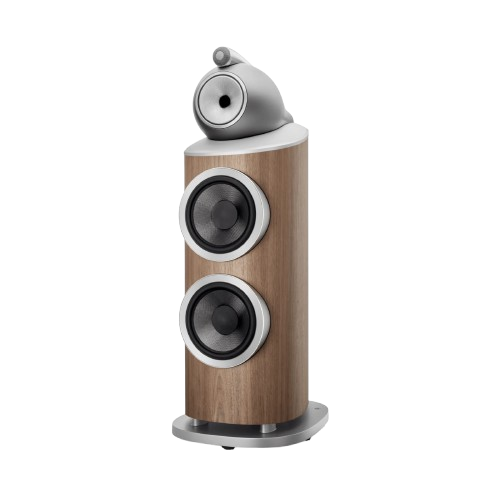

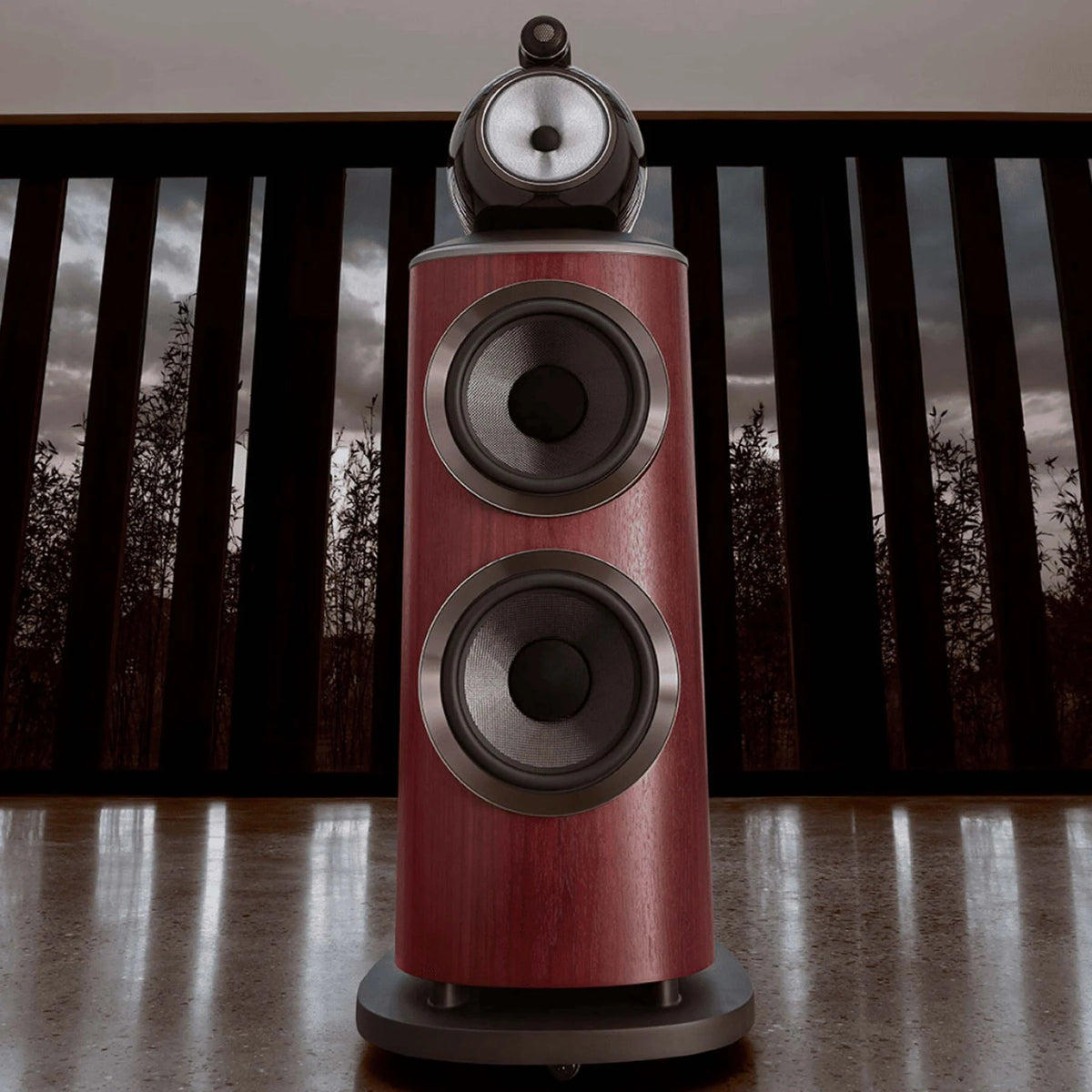

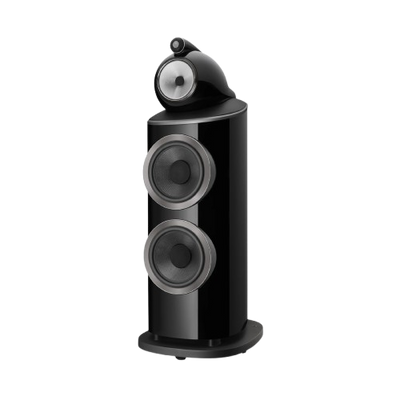

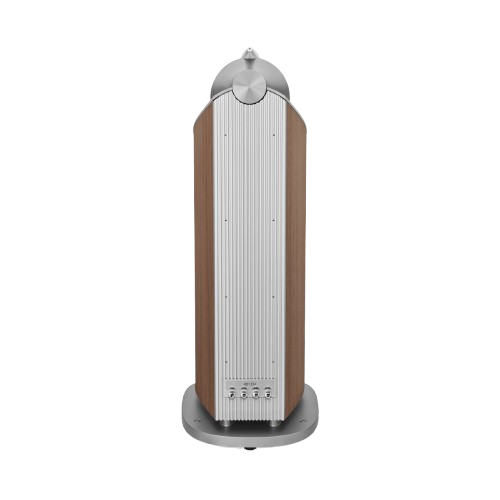

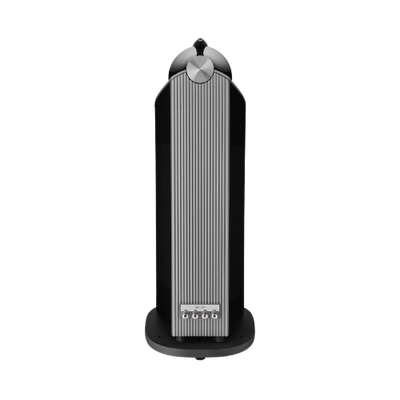

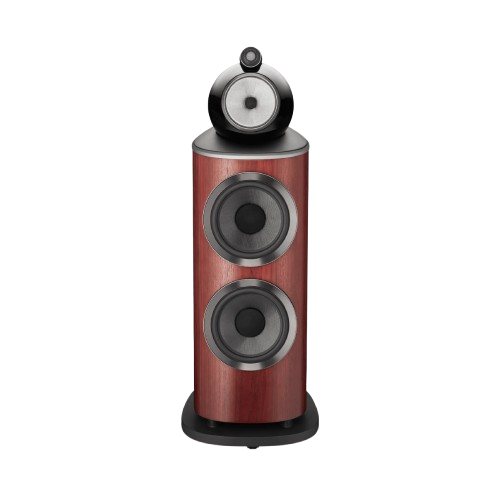

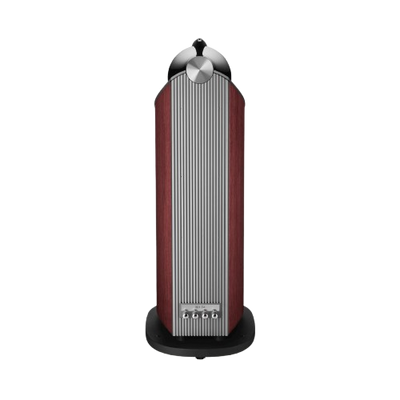

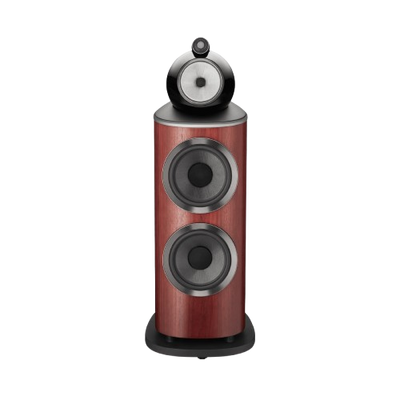

Bowers & Wilkins 801 D4 Floor Standing Speakers - (Pair)
Overview
A recording only sounds convincing if the speaker adds as little of its own character as possible, and that is the goal behind the 801 D4.
The Bowers & Wilkins 801 D4 is the flagship floor-standing loudspeaker of the 800 Series Diamond range, a 3-way vented-box design with a 25mm Diamond dome tweeter, a 150mm Continuum cone FST midrange and two 250mm Aerofoil cone bass units. The Continuum midrange sits in an all-aluminium Turbine Head that Bowers & Wilkins says is stiff and critically damped to eliminate unwanted resonances.
Frequency response is 15Hz to 28kHz (±3dB) with 90dB sensitivity and an 8Ω nominal impedance (3.0Ω minimum). Bowers & Wilkins recommends 50W to 1000W into 8Ω, so it pairs with everything from a modest power amplifier to a very powerful one.
Simcoe Audio Video Insight
At 1221mm tall and 100.60kg each, the 801 D4 is a serious piece of equipment, and it rewards careful placement and a properly matched amplifier. We can talk through room size, positioning and amplification with you so the speakers are set up to do what they were designed to do.
More Info
Why the Bowers & Wilkins 801 D4 Stands Out
Turbine Head Midrange Enclosure
The all-aluminium Turbine Head houses the Continuum midrange cone in a stiff, critically damped enclosure and decouples it from both the bass enclosure and the tweeter body.
Biomimetic Suspension
Bowers & Wilkins says this suspension greatly reduces the unwanted air pressure and coloration that a traditional fabric spider can generate.
Diamond Dome Tweeter
A 25mm Diamond dome in a Solid Body Tweeter-on-Top housing handles the high frequencies up to 35kHz.
Twin Aerofoil Bass Units
Two 250mm (10 in) Aerofoil cone bass units and a Flowport deliver a frequency response of 15Hz to 28kHz (±3dB).
Wide Amplifier Range
Rated at 90dB sensitivity with a recommended 50W to 1000W into 8Ω.
Flagship of the Range
Bowers & Wilkins calls it the flagship and the most powerful model in the 800 Series Diamond range.
Buyer's Guide
Who It's For
- The Reference-Level Listener: wants the most capable loudspeaker in the 800 Series Diamond range.
- The Owner of a Large Room: has the space for a 1221mm tall, 100.60kg floorstander with a frequency range reaching down to 13Hz.
- The High-Power Amplifier Owner: runs an amplifier anywhere from 50W to 1000W into 8Ω.
How It Compares
The 802 D4 uses the same 25mm Diamond dome tweeter and 150mm Continuum cone FST midrange but has two 200mm Aerofoil bass units, a 1218mm tall cabinet and a recommended amplifier range of 50W to 500W. The 801 D4 Signature, listed separately, is the Custom Theatre version with the same drive unit complement.
Bowers & Wilkins 801 D4 Floor Standing Speakers - (Pair) Specifications
| General Information | |
|---|---|
| Model | Bowers & Wilkins 801 D4 |
| Brand | Bowers & Wilkins |
| Series | 800 Series Diamond |
| Type | 3-way vented-box floor-standing loudspeaker (pair) |
| Drive Units | |
| High Frequency | 1 x 25mm (1 in) Diamond dome, Solid Body Tweeter-on-Top |
| Midrange | 1 x 150mm (6 in) Continuum cone FST |
| Bass | 2 x 250mm (10 in) Aerofoil cone |
| Technologies | Matrix, Anti-Resonance Plug, Biomimetic Suspension, Turbine Head, Flowport |
| Performance | |
| Frequency Response | 15Hz - 28kHz (±3dB from reference axis) |
| Frequency Range | 13Hz - 35kHz |
| Sensitivity | 90dB (2.83Vrms, 1m) |
| Harmonic Distortion | <1% 30Hz - 20kHz; <0.3% 100Hz - 20kHz (2nd and 3rd harmonics, 90dB, 1m on axis) |
| Nominal Impedance | 8 ohms (minimum 3.0 ohms) |
| Recommended Amplifier Power | 50W - 1000W into 8 ohms, unclipped programme |
| Max Recommended Cable Impedance | 0.1 ohms |
| Dimensions & Weight (Per Speaker) | |
| Height | 1221mm (48.1 in) |
| Width | 451mm (17.8 in) |
| Depth | 600mm (23.6 in) |
| Net Weight | 100.60kg (221.8 lb) |

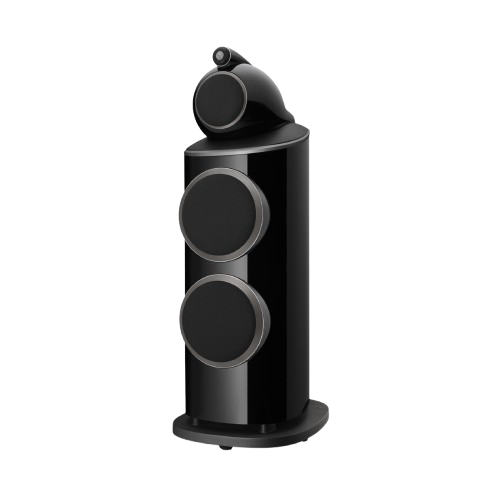

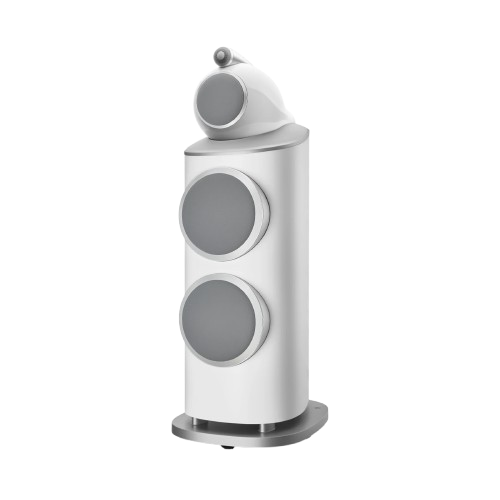

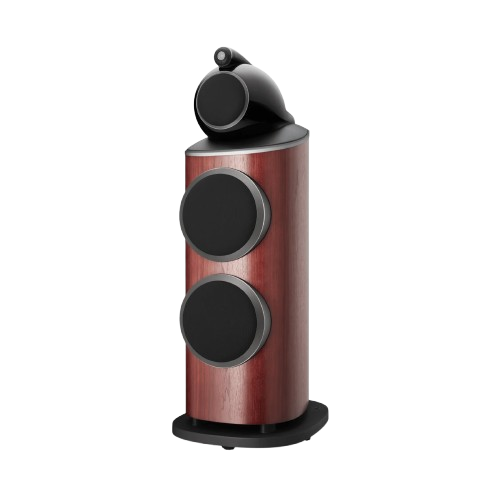

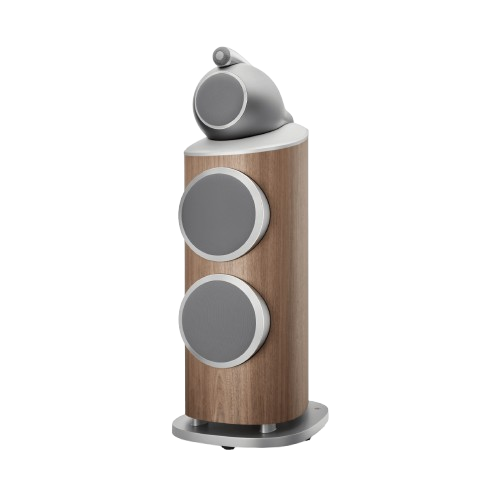

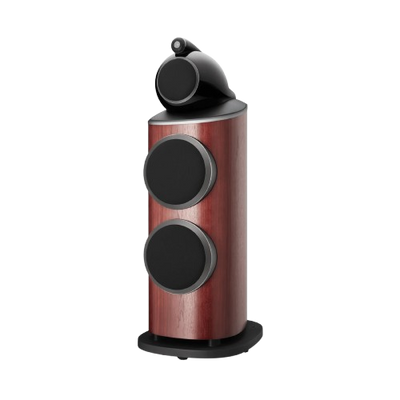

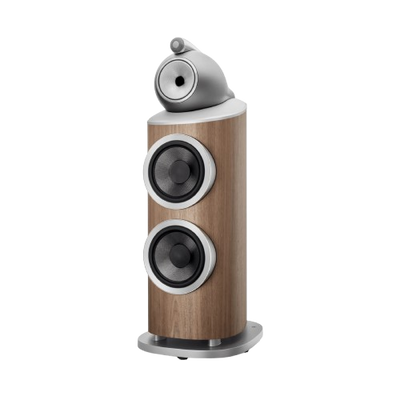

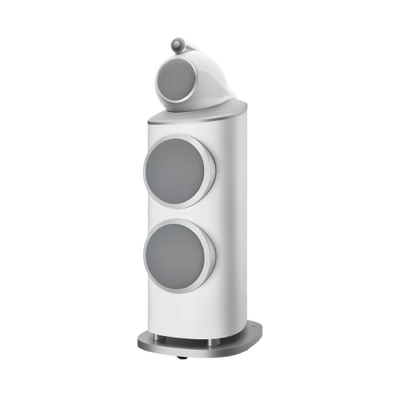

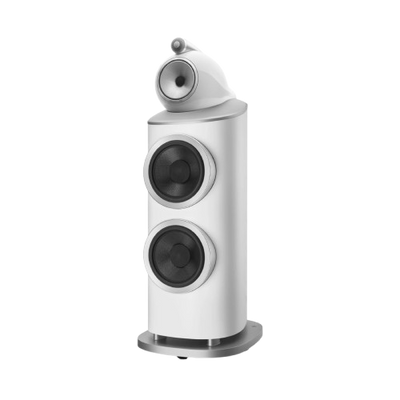

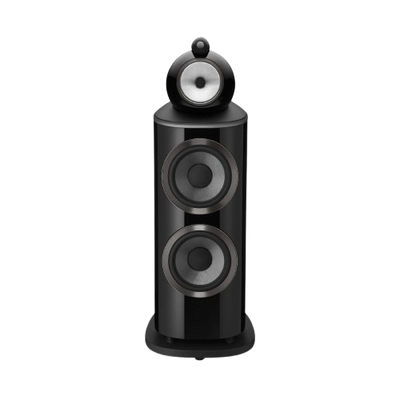

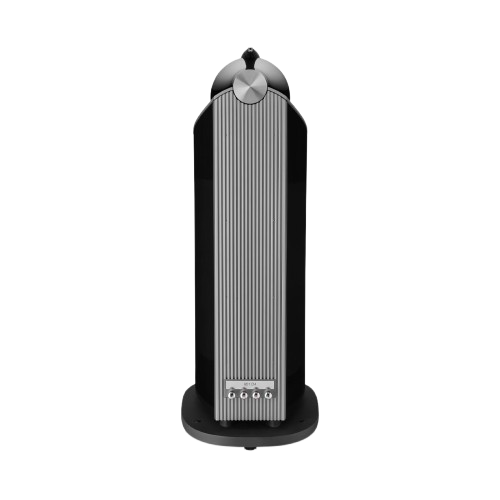

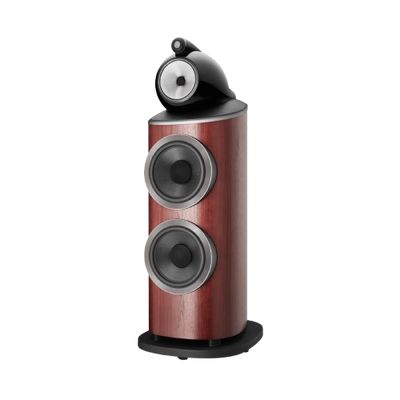

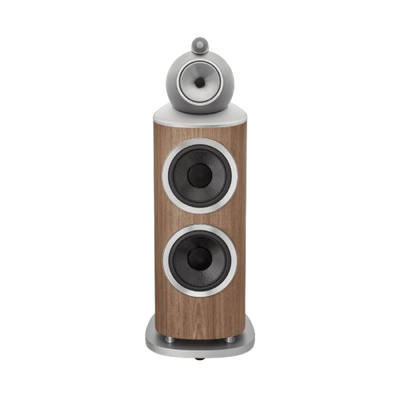

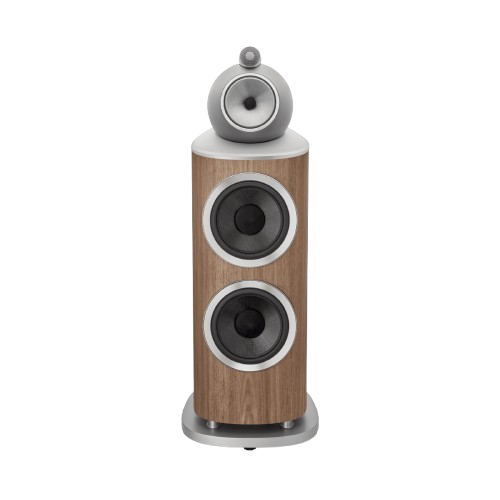

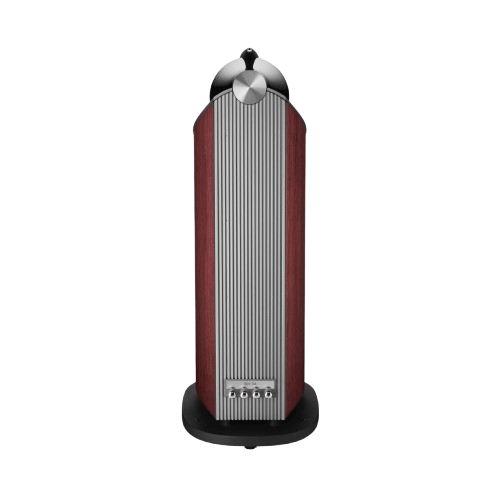

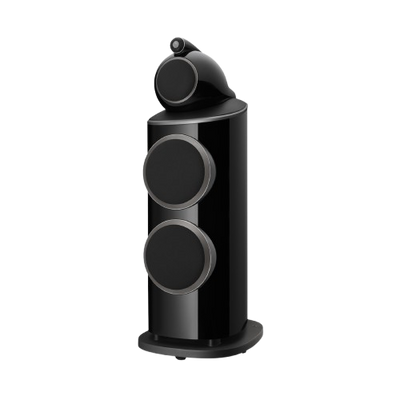

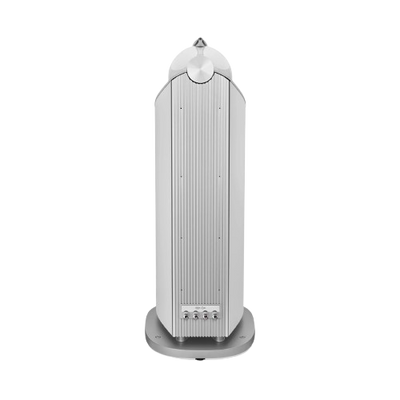

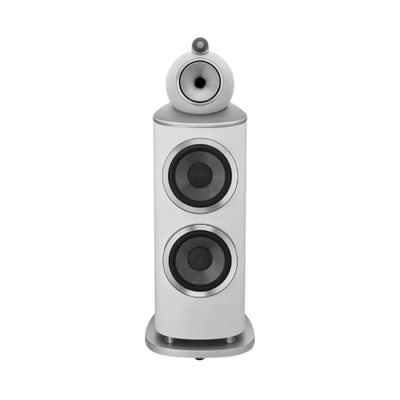

| Colours Available | Gloss Black, White, Satin Rosenut, Satin Walnut (grille: Black or Grey) |
