Bryston 9B Cubed Modular Multi Channel Amplifier
We are an authorized Bryston dealer!
This product is available in store only. Contact Simcoe Audio Video for more information on product availability including shipping and inventory.
Email Your Question
Pairs well with
30 Day Return Policy
Bryston 9B Cubed Modular Multi Channel Amplifier
Overview

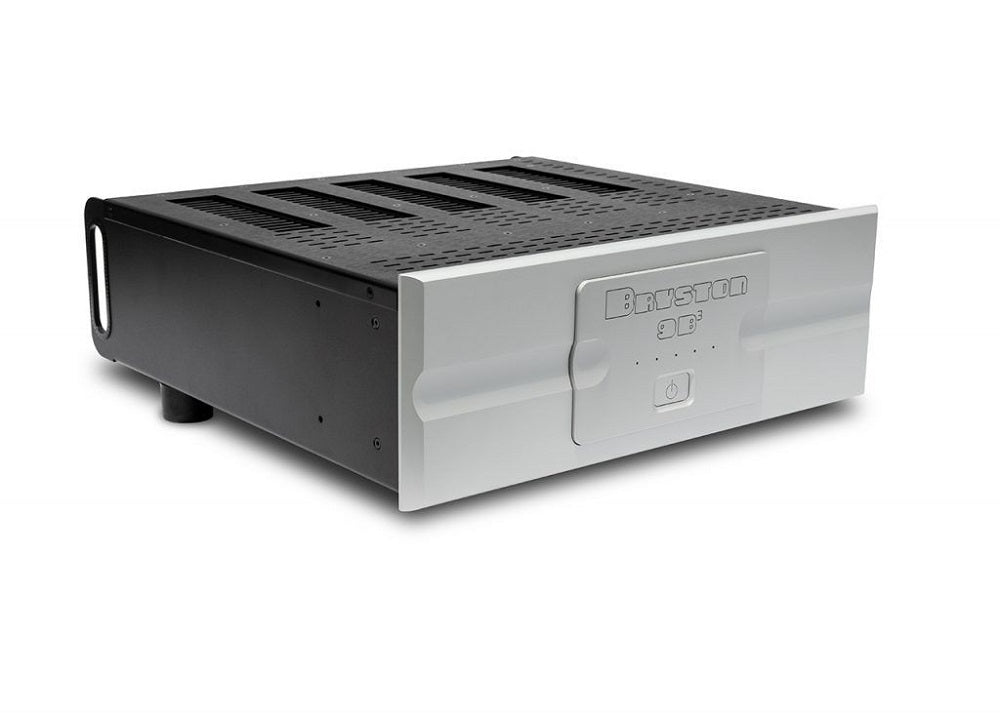

The Bryston 9B Cubed (9B³) is a modular multi-channel power amplifier available in 3, 4, or 5 channel configurations, with each channel rated at 200 watts into 8 ohms and up to 300 watts into 4 ohms. Channels can be added or removed later, so the amp can grow with a home theatre or multi-zone system.

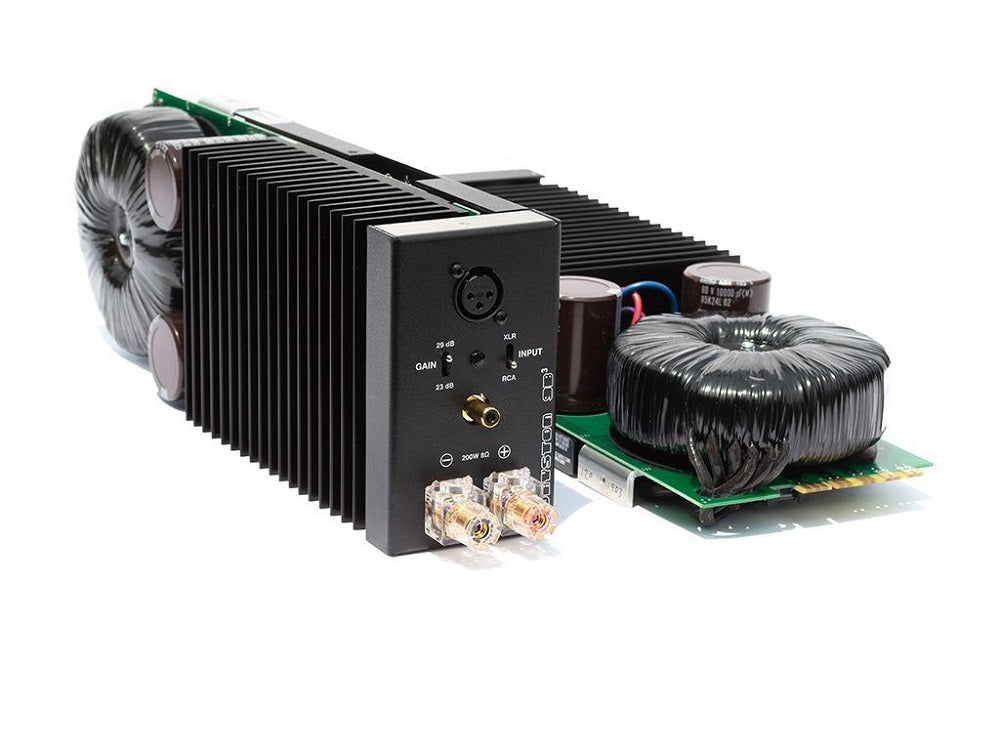

Each channel is fully independent, with its own power supply and toroidal transformer. Bryston says that means high output on one channel won't be a drag on the others, keeping every note dynamic and clear. The 9B³ also brings Bryston's patented Salomie circuit to a five-channel form factor for the first time, with distortion rated under 0.005% (THD+N, 20Hz to 20kHz at rated power).
Network monitoring and control is built into every unit: from the amp's own webpage you can power it on or off, check temperature, see clipping warnings, mute individual channels, and update firmware. Single-ended and balanced inputs, switchable 23dB or 29dB gain, a DC trigger, fanless convection cooling, and a SoftStart sequence that won't trip breakers round it out.
Simcoe Audio Video Insight
The 9B³ suits home theatres and multi-room systems where several speakers need the same quality of amplification. Because channels are modular, you can start with three for the front stage and add more later. The built-in network page is useful in an automated home, since you can check status and mute channels without walking to the rack. Leave space around it for convection cooling.
More Info
Why the Bryston 9B Cubed Stands Out
200W Per Channel
200 watts into 8 ohms and up to 300 watts into 4 ohms on every channel.
Fully Modular
3, 4, or 5 channels, with channels added or removed later on.
Independent Power Supplies
Each channel has its own power supply and toroidal transformer.
Network Monitoring and Control
Power, temperature, clipping, channel mute, and firmware updates from the amp's own webpage.
Salomie Input Circuit
Bryston's patented circuit in a five-channel form factor for the first time.
Fanless Convection Cooling
Fully convection cooled, with no noisy fans.
Buyer's Guide
Who It's For
- The Home Theatre Builder: Wants matched, high-quality amplification across front and surround channels.
- The Multi-Zone Integrator: Wants network monitoring and control for an automated home.
- The Growing System: Wants to start with fewer channels and add more later.
How It Compares
The 9B³ brings Cubed Series performance to up to five 200W channels in one chassis. For two-channel systems, the 3B³ offers the same 200W per channel into 8 ohms in a stereo chassis, while the 4B³ steps up to 300W per channel.
Bryston 9B Cubed Modular Multi Channel Amplifier Specifications
| General Information | |
|---|---|
| Model | Bryston 9B Cubed (9B³) |
| Brand | Bryston |
| Product Type | Modular multi-channel power amplifier |
| Configurations | 3, 4, or 5 channels; channels can be added or removed later |
| Options | 17" or 19" faceplate (19" includes front handles); 19" PRO version with rack-mount panel and rear channel trim pots |
| Performance | |
| Power Output (per channel) | 200W @ 8 ohms; 300W @ 4 ohms |
| Frequency Response | <1Hz - 100kHz (-3dB) |
| THD+N | <0.005% (20Hz - 20kHz, rated power, 8 ohms) |
| Noise | RCA: <-108dB; XLR: -110dB |
| Slew Rate | >60V/µs |
| Damping Factor | >300 (20Hz, 8 ohms) |
| Inputs & Control | |

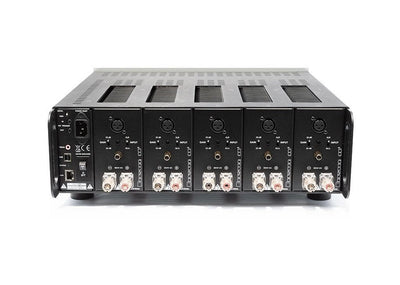

| Inputs | Single-ended and balanced per channel |
| Input Impedance | Unbalanced 30k ohms; balanced 30k ohms (+) / 6k ohms (-) |
| Gain | Switchable 23dB or 29dB |
| Network | Web page control and monitoring: power on/off, temperature, clipping, channel mute, firmware updates |
| Trigger | AC/DC trigger input with passthrough |
| Start-Up | Microprocessor-controlled SoftStart |
| Standby Power | <500mW |
| Physical Specifications | |
| Dimensions (W x H x D) | 17" or 19" x 5.8" x 17.5" (19" with front handles) |
| Weight | 65 lb (29.5 kg) |
| Cooling | Fully convection cooled (no fans) |
| Enclosure | Machined and anodized aluminium |
| Colours Available | Silver or black faceplate |
