Bryston 14B Cubed Stereo Amplifier
We are an authorized Bryston dealer!
This product is available in store only. Contact Simcoe Audio Video for more information on product availability including shipping and inventory.
Email Your Question
Pairs well with
30 Day Return Policy

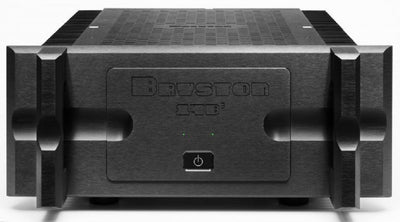

Bryston 14B Cubed Stereo Amplifier
Overview
The Bryston 14B Cubed (14B³) is a two-channel power amplifier with the kind of output Bryston says is usually only found in monoblocks: 600 watts per channel into 8 ohms and up to 900 watts into 4 ohms. Bryston describes it as big and heavy, and at 41 kg it is, but it's built to drive any loudspeaker with agility and speed.
Each channel has a fully independent power supply, including its own transformer, so the two sides of the amplifier work as separate units in one chassis. Like every Cubed Series amplifier, it uses Bryston's patented Salomie input circuit, and Bryston rates distortion at under 0.005% (THD+N, 20Hz to 20kHz at rated power) with a bandwidth extending from below 1Hz to 100kHz.

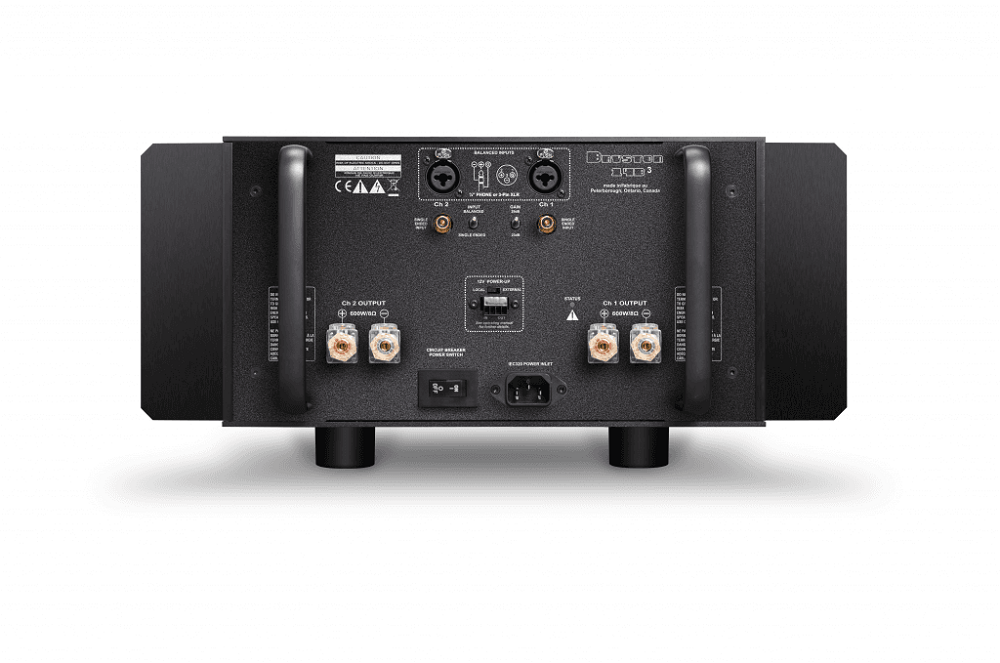

Balanced XLR and single-ended RCA inputs, switchable 23dB or 29dB gain, and a DC trigger make it easy to fit into a system. It's fully convection cooled, so there are no fans, and a microprocessor-controlled SoftStart sequence brings it up without tripping circuit breakers.
Simcoe Audio Video Insight
The 14B³ suits systems with demanding speakers where you want serious power without running two separate monoblocks. Plan the space before it arrives: it weighs 41 kg, stands 8.1 inches tall, and needs room for convection cooling. Use the 23dB or 29dB gain switch to match your preamp's output, and the DC trigger to power it on with the rest of your system.
More Info
Why the Bryston 14B Cubed Stands Out
600W Per Channel
600 watts into 8 ohms and up to 900 watts into 4 ohms, per channel.
Dual-Mono Power Supplies
Each channel has a fully independent power supply, including its own transformer.
Salomie Input Circuit
The patented input stage used across Bryston's Cubed Series amplifiers.

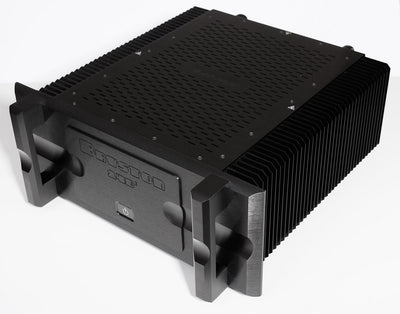

Fanless Convection Cooling
Fully convection cooled, with no noisy fans.
Switchable Gain
Choose 23dB or 29dB to match your preamplifier or processor.
SoftStart and DC Trigger
A microprocessor-controlled start-up that won't trip breakers, plus a DC trigger for automated on and off.
Buyer's Guide
Who It's For
- The Demanding-Speaker Owner: Needs high current and power for large or difficult loudspeakers.
- The Two-Channel Purist: Wants monoblock-level output in a single stereo chassis.
- The Integrated System Builder: Wants XLR inputs and trigger control for an automated system.
How It Compares
The 14B³ is Bryston's dual-channel Cubed amplifier at 600W per channel. The 4B³ is a two-channel option at 300W per channel into 8 ohms for less demanding speakers, while the 7B³ delivers 600W into 8 ohms as a single-channel monoblock, so a pair gives each speaker its own chassis.
Bryston 14B Cubed Stereo Amplifier Specifications
| General Information | |
|---|---|
| Model | Bryston 14B Cubed (14B³) |
| Brand | Bryston |
| Product Type | Two-channel power amplifier, dual-mono |
| Options | 17" or 19" faceplate (19" includes front handles); PRO version with 19" rack-mount panel and rear channel trim pots |
| Performance | |
| Power Output (per channel) | 600W @ 8 ohms; 900W @ 4 ohms |
| Frequency Response | <1Hz - 100kHz (-3dB) |
| THD+N | <0.005% (20Hz - 20kHz, rated power, 8 ohms) |
| Noise | RCA: -118dB; XLR: -122dB |
| Slew Rate | >60V/µs |
| Damping Factor | >300 (20Hz, 8 ohms) |
| Inputs & Control | |
| Inputs | Balanced XLR and single-ended RCA |
| Input Impedance | Unbalanced 7.5k ohms; balanced 5k ohms per leg |
| Gain | Switchable 23dB or 29dB |
| Trigger | AC/DC trigger input with passthrough |
| Start-Up | Microprocessor-controlled SoftStart |
| Standby Power | <500mW |
| Physical Specifications | |
| Dimensions (W x H x D) | 17" or 19" x 8.1" x 16.8" (18.4" with front handles) |
| Weight | 91 lb (41 kg) |
| Cooling | Fully convection cooled (no fans) |
| Enclosure | Machined and anodized aluminium |
| Colours Available | Silver or black faceplate |
